kubeadm是官方社区推出的一个用于快速部署kubernetes集群的工具。

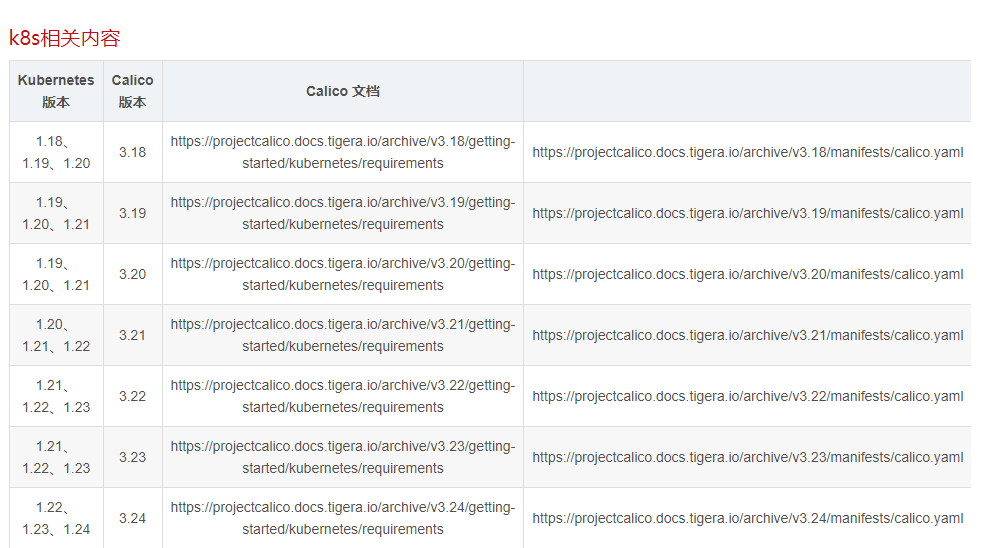

calico.yaml
kubernertes-dashboard.yaml

1. 安装要求

在开始之前,部署Kubernetes集群机器需要满足以下几个条件:

  • 10台机器,操作系统Openeuler22.03 LTS SP4
  • 硬件配置:2GB或更多RAM,2个CPU或更多CPU,硬盘30GB或更多,docker 数据卷单独挂载
  • 集群中所有机器之间网络互通
  • 可以访问外网,需要拉取镜像,【镜像代理自行解决】
  • 禁止swap分区

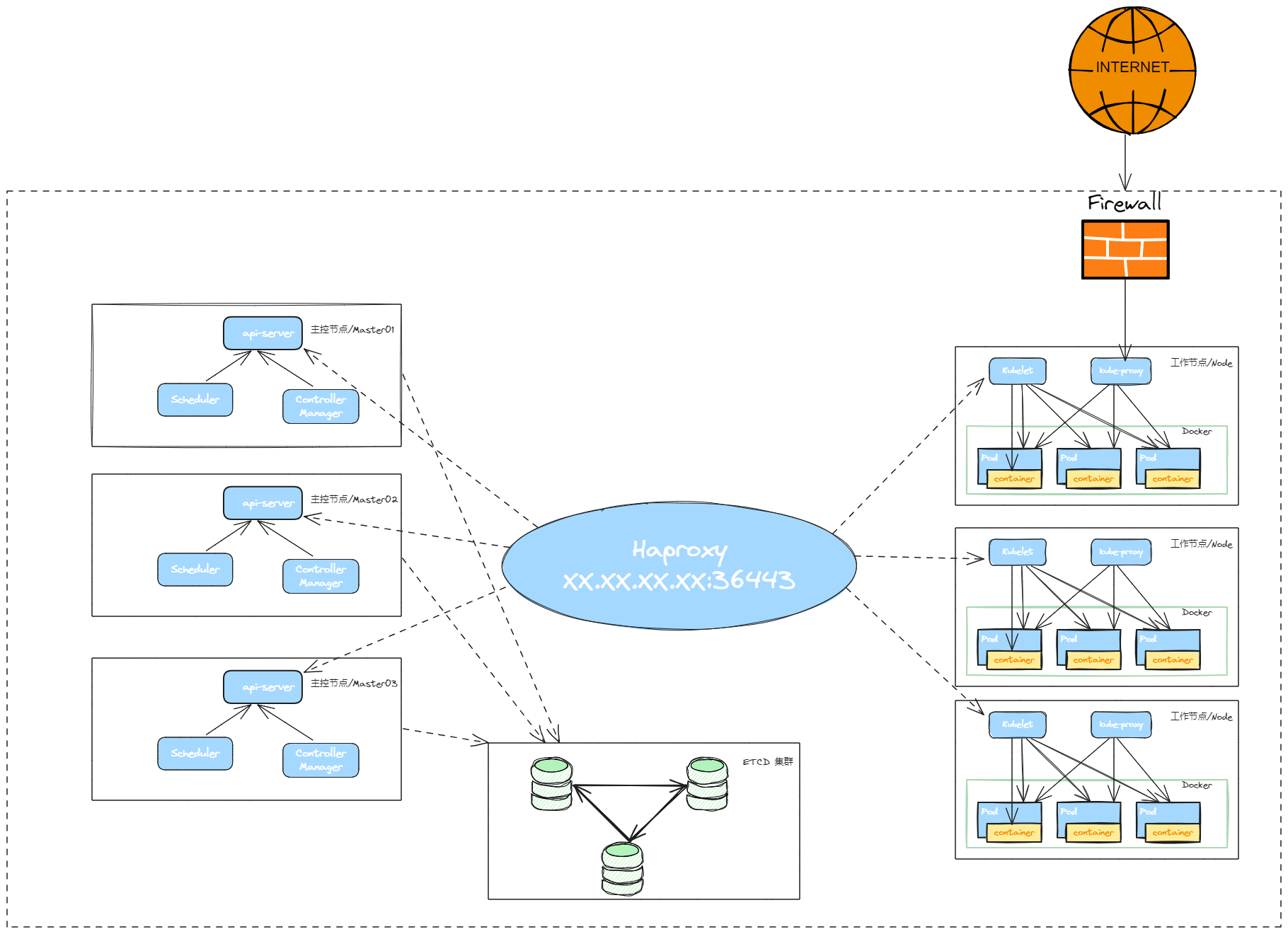

2. 准备环境


角色 IP 组件 功能描述
Haproxy 172.22.33.210 haproxy K8S入口,负载均衡
k8s-master01 172.22.33.215 docker,cri-dockerd,kube-apiserver,kube-scheduler,kube-controller-manager,kubelet,kube-proxy,coredns,calico k8s master01节点
k8s-master02 172.22.33.216 docker,cri-dockerd,kube-apiserver,kube-scheduler,kube-controller-manager,kubelet,kube-proxy,calico k8s master02节点
k8s-master03 172.22.33.217 docker,cri-dockerd,kube-apiserver,kube-scheduler,kube-controller-manager,kubelet,kube-proxy,calico k8s master03节点
k8s-node01 172.22.33.218 docker,cri-dockerd,kubelet,kube-proxy,coredns,calico k8s-node01 工作节点
k8s-node02 172.22.33.219 docker,cri-dockerd,kubelet,kube-proxy,coredns,calico k8s-node02 工作节点
k8s-node03 172.22.33.220 docker,cri-dockerd,kubelet,kube-proxy,coredns,calico k8s-node03 工作节点
etcd-01 172.22.33.223 etcd etcd-01服务器
etcd-02 172.22.33.224 etcd etcd-02服务器
etcd-03 72.22.33.225 etcd etcd-03服务器

2.1 环境初始化

K8S 集群服务器 都需要配置

关闭防火墙:
$ systemctl stop firewalld
$ systemctl disable firewalld

关闭selinux:
$ sed -i 's/enforcing/disabled/' /etc/selinux/config  # 永久
$ setenforce 0  # 临时

关闭swap:[临时和永久关闭]
#临时关闭
$ swapoff -a

#永久关闭
$ sed -ri 's/.*swap.*/#&/' /etc/fstab


设置主机名:
$ hostnamectl set-hostname k8s-master01
$ hostnamectl set-hostname k8s-master02
$ hostnamectl set-hostname k8s-master03
$ hostnamectl set-hostname k8s-node01
$ hostnamectl set-hostname k8s-node02
$ hostnamectl set-hostname k8s-node03


#在K8S上所有节点添加hosts:
$ cat >> /etc/hosts << EOF
172.22.33.215 k8s-master01
172.22.33.216 k8s-master02
172.22.33.217 k8s-master03
172.22.33.218 k8s-node01
172.22.33.219 k8s-node02
172.22.33.220 k8s-node03
EOF


#开启内核路由转发
sed -i 's/net.ipv4.ip_forward=0/net.ipv4.ip_forward=1/g' /etc/sysctl.conf


#将桥接的IPv4,IPV6流量传递到iptables的链:
$ cat > /etc/sysctl.d/k8s.conf << EOF
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1
vm.swappiness = 0
EOF

# 生效
$ sysctl --system


#每个节点都需要安装 IPVS 的相关工具和加载ipvs内核模块
$ yum install ipvsadm

#在所有节点执行以下命令
$ cat > /etc/sysconfig/modules/ipvs.modules <<EOF
#!/bin/bash
modprobe -- ip_vs
modprobe -- ip_vs_rr
modprobe -- ip_vs_wrr
modprobe -- ip_vs_sh
modprobe -- nf_conntrack_ipv4
EOF

$ chmod 755 /etc/sysconfig/modules/ipvs.modules
$ bash /etc/sysconfig/modules/ipvs.modules

#查看IPVS模块加载情况
$ lsmod | grep -e ip_vs -e nf_conntrack_ipv4
#能看到ip_vs ip_vs_rr ip_vs_wrr  ip_vs_sh nf_conntrack_ipv4  加载成功


时间同步:
$ yum install ntpdate -y
$ ntpdate ntp.ntsc.ac.cn

3. 安装Docker/cri-dockerd/kubeadm/kubelet/kubectl

在所有K8S 集群的节点上,执行

**Kubernetes1.24 之后, ** 在k8s中使用docker,除了安装docker 以外,还需要=安装cri-dockerd 组件; 不然就使用Containerd


3.1.1 docker二进制包下载

docker-ce 社区下载地址:

$ wget https://mirrors.nju.edu.cn/docker-ce/linux/static/stable/x86_64/docker-20.10.24.tgz

3.1.2 解压,拷贝至/usr/bin 下

$ tar -xf docker-20.10.24.tgz
$ cp docker/* /usr/bin
$ which docker

3.1.3 编写docker.service文件

$ cat > /etc/systemd/system/docker.service <<EOF

[Unit]
Description=Docker Application Container Engine
Documentation=https://docs.docker.com
After=network-online.target firewalld.service
Wants=network-online.target

[Service]
Type=notify
ExecStart=/usr/bin/dockerd
ExecReload=/bin/kill -s HUP $MAINPID
LimitNOFILE=65535
LimitNPROC=65535
LimitCORE=65535
TimeoutStartSec=0
Delegate=yes
KillMode=process
Restart=on-failure
StartLimitBurst=3
StartLimitInterval=60s

[Install]
WantedBy=multi-user.target

EOF

3.1.4 挂载docker默认存储路径[可选]

docker的默认工作路径在/var/lib/docker ,最好不修改默认存储路径,可以做软链接

#建立工作目录
$ mkdir /home/application/

#格式化磁盘
$ mkfs.ext4 /dev/sdb

#磁盘永久挂载
$ vim /etc/fstab
/dev/sdb  /home/application  ext4 defaults 0 0

#使挂载生效
$ mount -a


# 创建docker 工作目录
$ mkdir /home/application/docker


#创建软链接
$ ln -s /home/application/docker /var/lib/

3.1.5 添加可执行权限

$ chmod +x /etc/systemd/system/docker.service

3.1.6 启动,加载,开机自启动

$ systemctl daemon-reload
$ systemctl start docker.service
$ systemctl enable docker.service

3.1.7 配置镜像加速器

$ mkdir -p /etc/docker
$ tee /etc/docker/daemon.json <<-'EOF'
{
  "registry-mirrors": ["https://docker.srebro.cn"],
  "exec-opts": ["native.cgroupdriver=systemd"]
}
EOF

$ systemctl daemon-reload
$ systemctl restart docker

⚠️tips:
如果仓库不是https 的,需要在 /etc/docker/daemon.json 中 添加忽略;比如下方的示例

"insecure-registries": [
    "https://harbor.srebro.cn",
    "https://it-docker.pkg.devops.com"
  ]

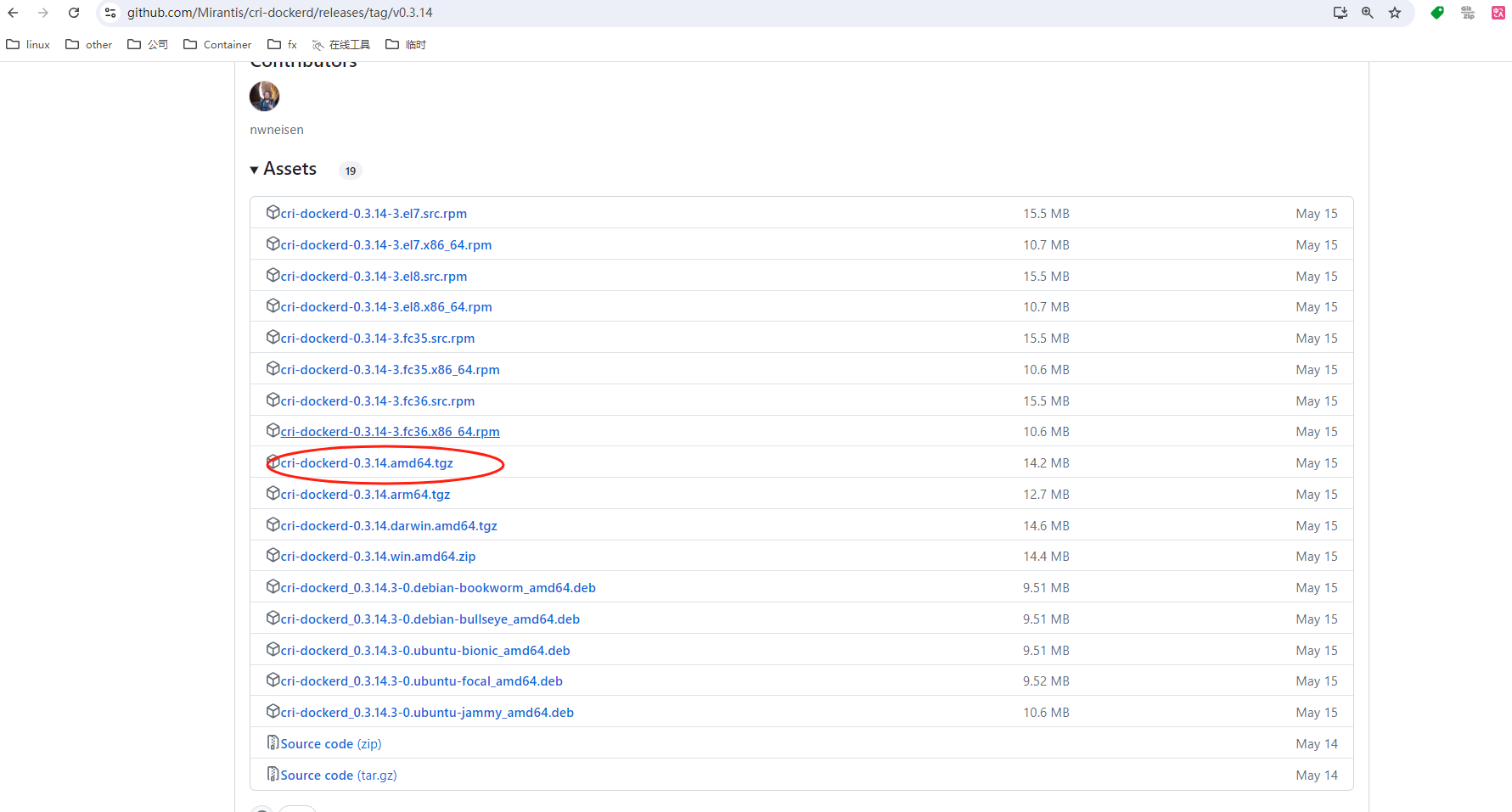

3.2.1 二进制部署cri-dockerd



# 下载
wget https://github.com/Mirantis/cri-dockerd/releases/download/v0.3.14/cri-dockerd-0.3.14.amd64.tgz
tar -xf cri-dockerd-0.3.14.amd64.tgz
cp cri-dockerd/cri-dockerd /usr/bin/
chmod +x /usr/bin/cri-dockerd

# 配置启动文件
cat <<"EOF" > /usr/lib/systemd/system/cri-docker.service
[Unit]
Description=CRI Interface for Docker Application Container Engine
Documentation=https://docs.mirantis.com
After=network-online.target firewalld.service docker.service
Wants=network-online.target
Requires=cri-docker.socket

[Service]
Type=notify

ExecStart=/usr/bin/cri-dockerd --network-plugin=cni --pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.9

ExecReload=/bin/kill -s HUP $MAINPID
TimeoutSec=0
RestartSec=2
Restart=always

StartLimitBurst=3

StartLimitInterval=60s

LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity

TasksMax=infinity
Delegate=yes
KillMode=process

[Install]
WantedBy=multi-user.target
EOF

# 生成socket 文件

cat <<"EOF" > /usr/lib/systemd/system/cri-docker.socket
[Unit]
Description=CRI Docker Socket for the API
PartOf=cri-docker.service

[Socket]
ListenStream=%t/cri-dockerd.sock
SocketMode=0660
SocketUser=root
SocketGroup=root

[Install]
WantedBy=sockets.target

EOF

# 启动CRI-DOCKER
systemctl daemon-reload
systemctl start cri-docker
systemctl enable cri-docker
systemctl is-active cri-docker

3.2.2 添加阿里云YUM软件源

$ cat > /etc/yum.repos.d/kubernetes.repo << EOF
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

3.2.3 安装kubeadm,kubelet和kubectl

由于版本更新频繁,这里指定版本号部署:

# 查看所有的可用版本
$ yum list  kubeadm  kubelet kubectl --showduplicates | sort -r


#在所有节点安装
$ yum install -y kubelet-1.28.2-0 kubeadm-1.28.2-0 kubectl-1.28.2-0

$ systemctl enable kubelet

4. 部署Haproxy负载均衡

4.1 yum安装haproxy

在172.22.33.210 服务器上部署

yum  -y install haproxy

4.2 修改配置文件

$ cat > /etc/haproxy/haproxy.cfg << EOF
global
    log /dev/log  local0 warning
    chroot      /var/lib/haproxy
    pidfile     /var/run/haproxy.pid
    maxconn     4000
    user        haproxy
    group       haproxy
    daemon
   stats socket /var/lib/haproxy/stats
defaults
  log global
  option  httplog
  option  dontlognull
        timeout connect 5000
        timeout client 50000
        timeout server 50000

#frontend monitor-in
  #bind *:33305
  #mode http
  #option httplog
  #monitor-uri /monitor

frontend kube-apiserver
  bind *:36443
  mode tcp
  option tcplog
  default_backend kube-apiserver

backend kube-apiserver
    mode tcp
    option tcplog
    option tcp-check
    balance roundrobin
    default-server inter 10s downinter 5s rise 2 fall 2 slowstart 60s maxconn 250 maxqueue 256 weight 100
    server kube-apiserver-1 172.22.33.215:6443 check # Replace the IP address with your own.
    server kube-apiserver-2 172.22.33.216:6443 check # Replace the IP address with your own.
    server kube-apiserver-3 172.22.33.217:6443 check # Replace the IP address with your own.
EOF

4.3 启动Haproxy

$ systemctl enable haproxy
$ systemctl start haproxy

5.部署etcd 集群

5.1 ETCD集群环境

机器IP 主机名 etcd版本
172.22.33.223 etcd-01 v3.3.8
172.22.33.224 etcd-02 v3.3.8
172.22.33.225 etcd-03 v3.3.8

5.2 修改主机名,添加hosts解析

在每台主机上执行

设置主机名:
$ hostnamectl set-hostname etcd-01
$ hostnamectl set-hostname etcd-02
$ hostnamectl set-hostname etcd-03


#在所有节点添加hosts:
$ cat >> /etc/hosts << EOF
172.22.33.223 etcd-01
172.22.33.224 etcd-02
172.22.33.225 etcd-03
EOF

5.3 下载软件包,创建etcd工作目录

在每台主机上执行

#创建etcd工作目录
$ mkdir -p /home/application/etcd/{bin,cfg,data,ssl}

# 下载软件包并解压
$ wget https://github.com/etcd-io/etcd/releases/download/v3.5.15/etcd-v3.5.15-linux-amd64.tar.gz
$ tar -xf etcd-v3.5.15-linux-amd64.tar.gz
$ mv etcd-v3.5.15-linux-amd64/{etcdctl,etcd} /home/application/etcd/bin/

#验证etcd版本
$ /home/application/etcd/bin/etcd --version
etcd Version: 3.5.15
Git SHA: 9a5533382
Go Version: go1.21.12
Go OS/Arch: linux/amd64

5.4 使用cfssl 工具签发etcd 证书

在172.22.33.223 主机上执行
签发证书的动作只需要在一台服务器上完成,签发之后,拷贝证书即可

#下载cfssl 签发工具【可能背墙,自行备源】
[root@master1 ~]# curl -L https://pkg.cfssl.org/R1.2/cfssl_linux-amd64 -o /usr/local/bin/cfssl
[root@master1 ~]# curl -L https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64 -o /usr/local/bin/cfssljson
[root@master1 ~]# curl -L https://pkg.cfssl.org/R1.2/cfssl-certinfo_linux-amd64 -o /usr/local/bin/cfssl-certinfo
[root@master1 ~]# chmod +x /usr/local/bin/cfssl*
  • 签发证书-配置 CA 并创建 TLS 证书

创建 Certificate Authority(CA), 并为 etcd创建 TLS 证书。

# 切换到证书工作目录下
$ cd /home/application/etcd/ssl

# 配置 CA 的操作参数和策略。这些参数决定了 CA 的行为,如证书的有效期、证书链的深度、使用的加密算法等
$ cat << EOF | tee ca-config.json
{
  "signing": {
    "default": {
      "expiry": "87600h"
    },
    "profiles": {
      "etcd": {
         "expiry": "87600h",
         "usages": [
            "signing",
            "key encipherment",
            "server auth",
            "client auth"
        ]
      }
    }
  }
}
EOF


# 配置CA 生成证书签名请求(CSR)
$ cat << EOF | tee ca-csr.json
{
    "CN": "etcd CA",
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "Nanjing",
            "ST": "Nanjing"
        }
    ]
}
EOF


#生成 CA 凭证和私钥:
$ cfssl gencert -initca ca-csr.json | cfssljson -bare ca


#结果将生成以下两个文件:
$ ls -l ca*.pem
-rw------- 1 root root 1679  8月 26 14:19 ca-key.pem
-rw-r--r-- 1 root root 1265  8月 26 14:19 ca.pem


  • 签发etcd server证书

修改请求文件中hosts字段包含所有etcd节点IP,172.22.33.223,172.22.33.224 ,172.22.33.225

# 创建etcd 证书请求文件
$ cat << EOF | tee server-csr.json
{
    "CN": "etcd",
    "hosts": [
    "172.22.33.223",
    "172.22.33.224",
    "172.22.33.225"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "Nanjing",
            "ST": "Nanjing"
        }
    ]
}
EOF

# 生成etcd server证书:
$ cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=etcd server-csr.json | cfssljson -bare server

#结果将生成以下两个文件:
$ ls -l server*.pem
-rw------- 1 root root 1675  8月 26 14:20 server-key.pem
-rw-r--r-- 1 root root 1338  8月 26 14:20 server.pem


  • 同步etcd 证书到其他节点
scp -rp /home/application/etcd/ssl/* 172.22.33.224:/home/application/etcd/ssl/*
scp -rp /home/application/etcd/ssl/* 172.22.33.225:/home/application/etcd/ssl/*

5.5 创建配置文件

172.22.33.223 etcd-01 节点

$ cd /home/application/etcd/cfg
$ cat >>  /home/application/etcd/cfg/etcd.conf << EOF
#[Member]
ETCD_NAME="etcd01"
ETCD_DATA_DIR="/home/application/etcd/data/default.etcd"
ETCD_LISTEN_PEER_URLS="https://172.22.33.223:2380"
ETCD_LISTEN_CLIENT_URLS="https://172.22.33.223:2379,http://127.0.0.1:2379"

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://172.22.33.223:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://172.22.33.223:2379"
ETCD_INITIAL_CLUSTER="etcd01=https://172.22.33.223:2380,etcd02=https://172.22.33.224:2380,etcd03=https://172.22.33.225:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"
ETCD_ENABLE_V2="true"

#[Security]
ETCD_CERT_FILE="/home/application/etcd/ssl/server.pem"
ETCD_KEY_FILE="/home/application/etcd/ssl/server-key.pem"
ETCD_TRUSTED_CA_FILE="/home/application/etcd/ssl/ca.pem"
ETCD_CLIENT_CERT_AUTH="true"
ETCD_PEER_CERT_FILE="/home/application/etcd/ssl/server.pem"
ETCD_PEER_KEY_FILE="/home/application/etcd/ssl/server-key.pem"
ETCD_PEER_TRUSTED_CA_FILE="/home/application/etcd/ssl/ca.pem"
ETCD_PEER_CLIENT_CERT_AUTH="true"
EOF

172.22.33.224 etcd-02 节点

#[Member]
ETCD_NAME="etcd02"
ETCD_DATA_DIR="/home/application/etcd/data/default.etcd"
ETCD_LISTEN_PEER_URLS="https://172.22.33.224:2380"
ETCD_LISTEN_CLIENT_URLS="https://172.22.33.224:2379,http://127.0.0.1:2379"

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://172.22.33.224:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://172.22.33.224:2379"
ETCD_INITIAL_CLUSTER="etcd01=https://172.22.33.223:2380,etcd02=https://172.22.33.224:2380,etcd03=https://172.22.33.225:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"
ETCD_ENABLE_V2="true"

#[Security]
ETCD_CERT_FILE="/home/application/etcd/ssl/server.pem"
ETCD_KEY_FILE="/home/application/etcd/ssl/server-key.pem"
ETCD_TRUSTED_CA_FILE="/home/application/etcd/ssl/ca.pem"
ETCD_CLIENT_CERT_AUTH="true"
ETCD_PEER_CERT_FILE="/home/application/etcd/ssl/server.pem"
ETCD_PEER_KEY_FILE="/home/application/etcd/ssl/server-key.pem"
ETCD_PEER_TRUSTED_CA_FILE="/home/application/etcd/ssl/ca.pem"
ETCD_PEER_CLIENT_CERT_AUTH="true"
EOF

172.22.33.225 etcd-03 节点

#[Member]
ETCD_NAME="etcd03"
ETCD_DATA_DIR="/home/application/etcd/data/default.etcd"
ETCD_LISTEN_PEER_URLS="https://172.22.33.225:2380"
ETCD_LISTEN_CLIENT_URLS="https://172.22.33.225:2379,http://127.0.0.1:2379"

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://172.22.33.225:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://172.22.33.225:2379"
ETCD_INITIAL_CLUSTER="etcd01=https://172.22.33.223:2380,etcd02=https://172.22.33.224:2380,etcd03=https://172.22.33.225:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"
ETCD_ENABLE_V2="true"

#[Security]
ETCD_CERT_FILE="/home/application/etcd/ssl/server.pem"
ETCD_KEY_FILE="/home/application/etcd/ssl/server-key.pem"
ETCD_TRUSTED_CA_FILE="/home/application/etcd/ssl/ca.pem"
ETCD_CLIENT_CERT_AUTH="true"
ETCD_PEER_CERT_FILE="/home/application/etcd/ssl/server.pem"
ETCD_PEER_KEY_FILE="/home/application/etcd/ssl/server-key.pem"
ETCD_PEER_TRUSTED_CA_FILE="/home/application/etcd/ssl/ca.pem"
ETCD_PEER_CLIENT_CERT_AUTH="true"
EOF

5.6 创建etcd.service 文件

在每台主机上执行

$ cat >> /usr/lib/systemd/system/etcd.service << EOF
[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target

[Service]
Type=notify
EnvironmentFile=/home/application/etcd/cfg/etcd.conf
ExecStart=/home/application/etcd/bin/etcd
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF

5.7 启动etcd

在每台主机上执行

$ systemctl daemon-reload
$ systemctl enable etcd
$ systemctl start etcd


# 检查etcd 服务是否正常
$ ps -ef | grep etcd | grep -v grep
root        7885       1  0 15:23 ?        00:00:00 /home/application/etcd/bin/etcd

5.8 etcd 集群服务可用性测试

使用etcdctl 工具测试,模拟写入数据,验证数据; etcdctl 工具,在安装包里有提供


#使用 etcdctl 工具快速检查指定的 etcd 节点(或节点集)的健康状态

$  /home/application/etcd/bin/etcdctl --endpoints=https://172.22.33.223:2379,https://172.22.33.224:2379,https://172.22.33.225:2379 \
--cacert=/home/application/etcd/ssl/ca.pem \
--cert=/home/application/etcd/ssl/server.pem \
--key=/home/application/etcd/ssl/server-key.pem \
--write-out=table endpoint health
+----------------------------+--------+-------------+-------+
|          ENDPOINT          | HEALTH |    TOOK     | ERROR |
+----------------------------+--------+-------------+-------+
| https://172.22.33.224:2379 |   true | 16.120369ms |       |
| https://172.22.33.223:2379 |   true | 16.605784ms |       |
| https://172.22.33.225:2379 |   true | 19.851873ms |       |
+----------------------------+--------+-------------+-------+


#使用 etcdctl 工具查看指定 etcd 节点(或节点集)当前的详细状态信息

$ /home/application/etcd/bin/etcdctl --endpoints=https://172.22.33.223:2379,https://172.22.33.224:2379,https://172.22.33.225:2379 \
--cacert=/home/application/etcd/ssl/ca.pem \
--cert=/home/application/etcd/ssl/server.pem \
--key=/home/application/etcd/ssl/server-key.pem \
--write-out=table endpoint status
+----------------------------+------------------+---------+---------+-----------+------------+-----------+------------+--------------------+--------+
|          ENDPOINT          |        ID        | VERSION | DB SIZE | IS LEADER | IS LEARNER | RAFT TERM | RAFT INDEX | RAFT APPLIED INDEX | ERRORS |
+----------------------------+------------------+---------+---------+-----------+------------+-----------+------------+--------------------+--------+
| https://172.22.33.223:2379 |  b905915d4c303d2 |  3.5.15 |   20 kB |     false |      false |         2 |         11 |                 11 |        |
| https://172.22.33.224:2379 | 912027a2ec294592 |  3.5.15 |   20 kB |      true |      false |         2 |         11 |                 11 |        |
| https://172.22.33.225:2379 | 81330706eb2302ba |  3.5.15 |   20 kB |     false |      false |         2 |         11 |                 11 |        |
+----------------------------+------------------+---------+---------+-----------+------------+-----------+------------+--------------------+--------+



#使用 etcdctl 工具验证测试 member

$   /home/application/etcd/bin/etcdctl --endpoints=https://172.22.33.223:2379,https://172.22.33.224:2379,https://172.22.33.225:2379 \
--cacert=/home/application/etcd/ssl/ca.pem \
--cert=/home/application/etcd/ssl/server.pem \
--key=/home/application/etcd/ssl/server-key.pem \
--write-out=table member list
+------------------+---------+--------+----------------------------+----------------------------+------------+
|        ID        | STATUS  |  NAME  |         PEER ADDRS         |        CLIENT ADDRS        | IS LEARNER |
+------------------+---------+--------+----------------------------+----------------------------+------------+
|  b905915d4c303d2 | started | etcd01 | https://172.22.33.223:2380 | https://172.22.33.223:2379 |      false |
| 81330706eb2302ba | started | etcd03 | https://172.22.33.225:2380 | https://172.22.33.225:2379 |      false |
| 912027a2ec294592 | started | etcd02 | https://172.22.33.224:2380 | https://172.22.33.224:2379 |      false |
+------------------+---------+--------+----------------------------+----------------------------+------------+



# etcdctl 工具验证测试数据读写
$  /home/application/etcd/bin/etcdctl --endpoints=https://172.22.33.223:2379,https://172.22.33.224:2379,https://172.22.33.225:2379 \
--cacert=/home/application/etcd/ssl/ca.pem \
--cert=/home/application/etcd/ssl/server.pem \
--key=/home/application/etcd/ssl/server-key.pem \
put srebro.cn hi
OK


$ /home/application/etcd/bin/etcdctl --endpoints=https://172.22.33.223:2379,https://172.22.33.224:2379,https://172.22.33.225:2379 \
--cacert=/home/application/etcd/ssl/ca.pem \
--cert=/home/application/etcd/ssl/server.pem \
--key=/home/application/etcd/ssl/server-key.pem \
get srebro.cn
srebro.cn
OK

5.9 拷贝etcd 集群证书到K8S-master 节点上

在所有master 节点上执行

#创建etcd证书工作目录
$ mkdir -p /etc/kubernetes/pki/etcd

#只需要拿etcd 集群中的任意一个节点上的证书,拷贝过去即可
$ scp -rp 172.22.33.223:/home/application/etcd/ssl/* /etc/kubernetes/pki/etcd/*

6. 部署Kubernetes Master

官方kubeadm 初始化说明:

6.1 准备好kubeadm-init.yaml初始化文件

6.1.1 使用外置ETCD 集群, 完成 kubeadm 初始化

⚠️ 包含etcd 证书

#在每个master 节点创建K8S,init 的工作目录
$ mkdir -p /etc/kubernetes/init

cat >> /etc/kubernetes/init/kubeadm-init.yaml << EOF
---
apiVersion: kubeadm.k8s.io/v1beta3
bootstrapTokens:
- groups:
  - system:bootstrappers:kubeadm:default-node-token
  token: 35sesk.5tm3tqc66tzlse8c
  ttl: 24h0m0s
  usages:
  - signing
  - authentication
kind: InitConfiguration
localAPIEndpoint:
  advertiseAddress: 172.22.33.223
  bindPort: 6443
nodeRegistration:
  criSocket: unix:///var/run/cri-dockerd.sock
  imagePullPolicy: IfNotPresent
  name: k8s-master01
  taints:
  - effect: NoSchedule
    key: node-role.kubernetes.io/master
---
apiServer:
  certSANs:
  - kubernetes
  - kubernetes.default
  - kubernetes.default.svc
  - kubernetes.default.svc.cluster.local
  - 172.22.33.210
  - 172.22.33.215
  - 172.22.33.216
  - 172.22.33.217
  - 112.94.71.21
  - k8s.srebro.cn
  timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta3
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controlPlaneEndpoint: 172.22.33.210:36443
controllerManager: {}
dns: {}
etcd:
  external:
    endpoints:
    - "https://172.22.33.223:2379"
    - "https://172.22.33.224:2379"
    - "https://172.22.33.225:2379"
    caFile: /etc/kubernetes/pki/etcd/ca.pem
    certFile: /etc/kubernetes/pki/etcd/server.pem
    keyFile: /etc/kubernetes/pki/etcd/server-key.pem
imageRepository: registry.aliyuncs.com/google_containers
kind: ClusterConfiguration
kubernetesVersion: v1.28.2
networking:
  dnsDomain: cluster.local
  podSubnet: 10.244.0.0/16
  serviceSubnet: 10.96.0.0/12
scheduler: {}
EOF

6.2 在所有master 节点上,pull 镜像到本地

init 之前,先下载镜像到master 机器上

#k8s-master01 节点上
$ kubeadm config images pull --config kubeadm-init.yaml

[config/images] Pulled registry.aliyuncs.com/google_containers/kube-apiserver:v1.28.2
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-controller-manager:v1.28.2
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-scheduler:v1.28.2
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-proxy:v1.28.2
[config/images] Pulled registry.aliyuncs.com/google_containers/pause:3.9
[config/images] Pulled registry.aliyuncs.com/google_containers/coredns:v1.10.1





#k8s-master02 节点上
$ kubeadm config images pull --config kubeadm-init.yaml

[config/images] Pulled registry.aliyuncs.com/google_containers/kube-apiserver:v1.28.2
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-controller-manager:v1.28.2
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-scheduler:v1.28.2
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-proxy:v1.28.2
[config/images] Pulled registry.aliyuncs.com/google_containers/pause:3.9
[config/images] Pulled registry.aliyuncs.com/google_containers/coredns:v1.10.1


#k8s-master03 节点上
$ kubeadm config images pull --config kubeadm-init.yaml

[config/images] Pulled registry.aliyuncs.com/google_containers/kube-apiserver:v1.28.2
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-controller-manager:v1.28.2
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-scheduler:v1.28.2
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-proxy:v1.28.2
[config/images] Pulled registry.aliyuncs.com/google_containers/pause:3.9
[config/images] Pulled registry.aliyuncs.com/google_containers/coredns:v1.10.1


6.3 在master01 节点上,完成kubeadm 初始化

$ cd /etc/kubernetes/init
$ kubeadm init --config kubeadm-init.yaml

[init] Using Kubernetes version: v1.28.2
[preflight] Running pre-flight checks
	[WARNING Service-Kubelet]: kubelet service is not enabled, please run 'systemctl enable kubelet.service'
[preflight] Pulling images required for setting up a Kubernetes cluster
[preflight] This might take a minute or two, depending on the speed of your internet connection
[preflight] You can also perform this action in beforehand using 'kubeadm config images pull'
W0828 15:30:08.273727   10698 checks.go:835] detected that the sandbox image "registry.aliyuncs.com/google_containers/pause:3.7" of the container runtime is inconsistent with that used by kubeadm. It is recommended that using "registry.aliyuncs.com/google_containers/pause:3.9" as the CRI sandbox image.
[certs] Using certificateDir folder "/etc/kubernetes/pki"
[certs] Generating "ca" certificate and key
[certs] Generating "apiserver" certificate and key
[certs] apiserver serving cert is signed for DNS names [k8s-master01 k8s.srebro.cn kubernetes kubernetes.default kubernetes.default.svc kubernetes.default.svc.cluster.local] and IPs [10.96.0.1 172.22.33.223 172.22.33.226 172.22.33.224 112.94.71.21]
[certs] Generating "apiserver-kubelet-client" certificate and key
[certs] Generating "front-proxy-ca" certificate and key
[certs] Generating "front-proxy-client" certificate and key
[certs] External etcd mode: Skipping etcd/ca certificate authority generation
[certs] External etcd mode: Skipping etcd/server certificate generation
[certs] External etcd mode: Skipping etcd/peer certificate generation
[certs] External etcd mode: Skipping etcd/healthcheck-client certificate generation
[certs] External etcd mode: Skipping apiserver-etcd-client certificate generation
[certs] Generating "sa" key and public key
[kubeconfig] Using kubeconfig folder "/etc/kubernetes"
W0828 15:30:09.375139   10698 endpoint.go:57] [endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[kubeconfig] Writing "admin.conf" kubeconfig file
W0828 15:30:09.562271   10698 endpoint.go:57] [endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[kubeconfig] Writing "kubelet.conf" kubeconfig file
W0828 15:30:09.703979   10698 endpoint.go:57] [endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[kubeconfig] Writing "controller-manager.conf" kubeconfig file
W0828 15:30:09.998820   10698 endpoint.go:57] [endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[kubeconfig] Writing "scheduler.conf" kubeconfig file
[control-plane] Using manifest folder "/etc/kubernetes/manifests"
[control-plane] Creating static Pod manifest for "kube-apiserver"
[control-plane] Creating static Pod manifest for "kube-controller-manager"
[control-plane] Creating static Pod manifest for "kube-scheduler"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Starting the kubelet
[wait-control-plane] Waiting for the kubelet to boot up the control plane as static Pods from directory "/etc/kubernetes/manifests". This can take up to 4m0s
[apiclient] All control plane components are healthy after 18.596178 seconds
[upload-config] Storing the configuration used in ConfigMap "kubeadm-config" in the "kube-system" Namespace
[kubelet] Creating a ConfigMap "kubelet-config" in namespace kube-system with the configuration for the kubelets in the cluster
[upload-certs] Skipping phase. Please see --upload-certs
[mark-control-plane] Marking the node k8s-master01 as control-plane by adding the labels: [node-role.kubernetes.io/control-plane node.kubernetes.io/exclude-from-external-load-balancers]
[mark-control-plane] Marking the node k8s-master01 as control-plane by adding the taints [node-role.kubernetes.io/master:NoSchedule]
[bootstrap-token] Using token: 35sesk.5tm3tqc66tzlse8c
[bootstrap-token] Configuring bootstrap tokens, cluster-info ConfigMap, RBAC Roles
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to get nodes
[bootstrap-token] Configured RBAC rules to allow Node Bootstrap tokens to post CSRs in order for nodes to get long term certificate credentials
[bootstrap-token] Configured RBAC rules to allow the csrapprover controller automatically approve CSRs from a Node Bootstrap Token
[bootstrap-token] Configured RBAC rules to allow certificate rotation for all node client certificates in the cluster
[bootstrap-token] Creating the "cluster-info" ConfigMap in the "kube-public" namespace
[kubelet-finalize] Updating "/etc/kubernetes/kubelet.conf" to point to a rotatable kubelet client certificate and key
[addons] Applied essential addon: CoreDNS
W0828 15:30:31.282450   10698 endpoint.go:57] [endpoint] WARNING: port specified in controlPlaneEndpoint overrides bindPort in the controlplane address
[addons] Applied essential addon: kube-proxy

Your Kubernetes control-plane has initialized successfully!

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

Alternatively, if you are the root user, you can run:

  export KUBECONFIG=/etc/kubernetes/admin.conf

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

You can now join any number of control-plane nodes by copying certificate authorities
and service account keys on each node and then running the following as root:

  kubeadm join 172.22.33.210:36443 --token 35sesk.5tm3tqc66tzlse8c \
	--discovery-token-ca-cert-hash sha256:5a4476ac560c2c5c577abea0f1310c040385e4c12cfd9038734a68952c9fe815 \
	--control-plane

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 172.22.33.210:36443 --token 35sesk.5tm3tqc66tzlse8c \
	--discovery-token-ca-cert-hash sha256:5a4476ac560c2c5c577abea0f1310c040385e4c12cfd9038734a68952c9fe815

拷贝kubectl使用的连接k8s认证文件到默认路径

$ mkdir -p $HOME/.kube
$ sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
$ sudo chown $(id -u):$(id -g) $HOME/.kube/config

6.4 加入 Kubernetes Master 节点

因为我们的K8S集群已经初始化过了,再添加其他master 节点到集群中,首要添加是把已经初始化过的证书拷贝到其他master 节点上

6.4.1 在master02和master03节点复制相关证书

#创建K8S证书工作目录
$ mkdir -p /etc/kubernetes/pki/

$ scp -r 172.22.33.215:/etc/kubernetes/pki/ca.* /etc/kubernetes/pki/
$ scp -r 172.22.33.215:/etc/kubernetes/pki/sa.* /etc/kubernetes/pki/
$ scp -r 172.22.33.215:/etc/kubernetes/pki/front-proxy-ca.* /etc/kubernetes/pki/

#拷贝k8s-admin 文件
$ scp -r 172.22.33.215:/etc/kubernetes/admin.conf /etc/kubernetes/

6.4.2 把 master02和master03节点 添加到Kubernetes 集群中

使用刚刚 master01 在kubeadm init输出的kubeadm join命令:

#加入控制平面
$ kubeadm join 172.22.33.210:36443 --token 35sesk.5tm3tqc66tzlse8c \
	--discovery-token-ca-cert-hash sha256:5a4476ac560c2c5c577abea0f1310c040385e4c12cfd9038734a68952c9fe815 \
	--control-plane

6.4.3 在master01节点上查看master节点个数

$ kubectl get node
NAME           STATUS     ROLES                  AGE     VERSION
k8s-master01   NotReady   control-plane,master   8m26s   v1.28.2
k8s-master02   NotReady   control-plane,master   2m54s   v1.28.2
k8s-master03   NotReady   control-plane,master   59s     v1.28.2

可以看到,所有的master 节点都已经加入到集群中了;NotReady是需要等待CNI网络插件安装好

7. 加入Kubernetes Node 节点

在K8S node 节点上操作

k8s-node01 172.22.33.218
k8s-node02 172.22.33.219
k8s-node03 172.22.33.220

使用刚刚master01 在kubeadm init输出的kubeadm join命令:

$ kubeadm join 172.22.33.210:36443 --token 35sesk.5tm3tqc66tzlse8c \
	--discovery-token-ca-cert-hash sha256:5a4476ac560c2c5c577abea0f1310c040385e4c12cfd9038734a68952c9fe815

默认token有效期为24小时,当过期之后,该token就不可用了。这时就需要重新创建token,可以直接在master 节点上,使用命令快捷生成:

$ kubeadm token create --print-join-command

8. 部署容器网络(CNI)

https://kubernetes.io/docs/setup/production-environment/tools/kubeadm/create-cluster-kubeadm/#pod-network
:::danger
注意:只需要部署下面其中一个,推荐Calico。
Calico是一个纯三层的数据中心网络方案,Calico支持广泛的平台,包括Kubernetes、OpenStack等。
Calico 在每一个计算节点利用 Linux Kernel 实现了一个高效的虚拟路由器( vRouter) 来负责数据转发,而每个 vRouter 通过 BGP 协议负责把自己上运行的 workload 的路由信息向整个 Calico 网络内传播。
此外,Calico  项目还实现了 Kubernetes 网络策略,提供ACL功能。
https://docs.projectcalico.org/getting-started/kubernetes/quickstart
K8S版本和calico 版本的对应关系
参考链接:https://blog.csdn.net/qq_32596527/article/details/127692734
:::

$ wget https://projectcalico.docs.tigera.io/archive/v3.21/manifests/calico.yaml

下载完后还需要修改里面定义Pod网络(CALICO_IPV4POOL_CIDR),与前面kubeadm init指定的
--pod-network-cidr=10.244.0.0/16 保持一致; 默认是 192.168.0.0/16

- name: CALICO_IPV4POOL_CIDR
  value: "10.244.0.0/16"


修改完后应用清单:

$ kubectl apply -f calico.yaml
$ kubectl get pods -n kube-system

查看所有节点,以及pod,svc情况

$ kubectl get nodes
NAME           STATUS   ROLES                  AGE   VERSION
k8s-master01   Ready    control-plane,master   70m   v1.28.2
k8s-master02   Ready    control-plane,master   64m   v1.28.2
k8s-master03   Ready    control-plane,master   62m   v1.28.2
k8s-node01     Ready    <none>                 46m   v1.28.2
k8s-node02     Ready    <none>                 46m   v1.28.2
k8s-node03     Ready    <none>                 46m   v1.28.2
[root@openeuler ~]# kubectl get all -A
NAMESPACE     NAME                                           READY   STATUS    RESTARTS   AGE
default       pod/my-web-6b6c9df775-2p67z                    1/1     Running   0          45m
default       pod/my-web-6b6c9df775-76f8w                    1/1     Running   0          45m
default       pod/my-web-6b6c9df775-t2zrm                    1/1     Running   0          45m
default       pod/my-web-6b6c9df775-zs6db                    1/1     Running   0          45m
kube-system   pod/calico-kube-controllers-5bb48c55fd-vvktf   1/1     Running   0          52m
kube-system   pod/calico-node-7ng4l                          1/1     Running   0          52m
kube-system   pod/calico-node-lrf24                          1/1     Running   0          47m
kube-system   pod/calico-node-qxnxg                          1/1     Running   0          52m
kube-system   pod/calico-node-vwjt4                          1/1     Running   0          52m
kube-system   pod/coredns-7f89b7bc75-cc6gn                   1/1     Running   0          70m
kube-system   pod/coredns-7f89b7bc75-wsg29                   1/1     Running   0          70m
kube-system   pod/etcd-k8s-master01                          1/1     Running   0          70m
kube-system   pod/etcd-k8s-master02                          1/1     Running   0          65m
kube-system   pod/etcd-k8s-master03                          1/1     Running   0          62m
kube-system   pod/kube-apiserver-k8s-master01                1/1     Running   0          70m
kube-system   pod/kube-apiserver-k8s-master02                1/1     Running   0          65m
kube-system   pod/kube-apiserver-k8s-master03                1/1     Running   0          62m
kube-system   pod/kube-controller-manager-k8s-master01       1/1     Running   1          70m
kube-system   pod/kube-controller-manager-k8s-master02       1/1     Running   0          65m
kube-system   pod/kube-controller-manager-k8s-master03       1/1     Running   0          62m
kube-system   pod/kube-proxy-ck9lr                           1/1     Running   0          63m
kube-system   pod/kube-proxy-vzrs8                           1/1     Running   0          65m
kube-system   pod/kube-proxy-wxb78                           1/1     Running   0          70m
kube-system   pod/kube-proxy-z5chd                           1/1     Running   0          47m
kube-system   pod/kube-scheduler-k8s-master01                1/1     Running   1          70m
kube-system   pod/kube-scheduler-k8s-master02                1/1     Running   0          65m
kube-system   pod/kube-scheduler-k8s-master03                1/1     Running   0          62m

NAMESPACE     NAME                 TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)                  AGE
default       service/kubernetes   ClusterIP   10.96.0.1    <none>        443/TCP                  70m
kube-system   service/kube-dns     ClusterIP   10.96.0.10   <none>        53/UDP,53/TCP,9153/TCP   70m

NAMESPACE     NAME                         DESIRED   CURRENT   READY   UP-TO-DATE   AVAILABLE   NODE SELECTOR            AGE
kube-system   daemonset.apps/calico-node   4         4         4       4            4           kubernetes.io/os=linux   52m
kube-system   daemonset.apps/kube-proxy    4         4         4       4            4           kubernetes.io/os=linux   70m

NAMESPACE     NAME                                      READY   UP-TO-DATE   AVAILABLE   AGE
default       deployment.apps/my-web                    4/4     4            4           45m
kube-system   deployment.apps/calico-kube-controllers   1/1     1            1           52m
kube-system   deployment.apps/coredns                   2/2     2            2           70m

NAMESPACE     NAME                                                 DESIRED   CURRENT   READY   AGE
default       replicaset.apps/my-web-6b6c9df775                    4         4         4       45m
kube-system   replicaset.apps/calico-kube-controllers-5bb48c55fd   1         1         1       52m
kube-system   replicaset.apps/coredns-7f89b7bc75                   2         2         2       70m

9. 测试kubernetes集群

  • 验证Pod工作
  • 验证Pod网络通信
  • 验证DNS解析

在Kubernetes集群中创建一个pod,验证是否正常运行:

$ kubectl create deployment nginx --image=nginx
$ kubectl expose deployment nginx --port=80 --type=NodePort
$ kubectl get pod,svc

访问地址:http://NodeIP:Port

10. 部署 Dashboard[可选]

$ wget https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.3/aio/deploy/recommended.yaml

默认Dashboard只能集群内部访问,修改Service为NodePort类型,暴露到外部:

$ vi recommended.yaml
...
kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 443
      targetPort: 8443
      nodePort: 30001
  selector:
    k8s-app: kubernetes-dashboard
  type: NodePort
...

$ kubectl apply -f recommended.yaml
$ kubectl get pods -n kubernetes-dashboard
NAME                                         READY   STATUS    RESTARTS   AGE
dashboard-metrics-scraper-6b4884c9d5-gl8nr   1/1     Running   0          13m
kubernetes-dashboard-7f99b75bf4-89cds        1/1     Running   0          13m

访问地址:https://NodeIP:30001
创建service account并绑定默认cluster-admin管理员集群角色:

# 创建用户
$ kubectl create serviceaccount dashboard-admin -n kube-system
# 用户授权
$ kubectl create clusterrolebinding dashboard-admin --clusterrole=cluster-admin --serviceaccount=kube-system:dashboard-admin
# 获取用户Token
$ kubectl describe secrets -n kube-system $(kubectl -n kube-system get secret | awk '/dashboard-admin/{print $1}')

使用输出的token登录Dashboard。

11. 补充

11.1 将节点上的容器运行时从 Docker Engine 改为 containerd

官网参考:https://kubernetes.io/zh-cn/docs/tasks/administer-cluster/migrating-from-dockershim/change-runtime-containerd/
1、配置先决条件【上面环境初始化的时候如果做过了,直接忽略】

$ cat <<EOF | sudo tee /etc/modules-load.d/containerd.conf
overlay
br_netfilter
EOF

$ sudo modprobe overlay
$ sudo modprobe br_netfilter

# 设置必需的 sysctl 参数,这些参数在重新启动后仍然存在。
cat <<EOF | sudo tee /etc/sysctl.d/99-kubernetes-cri.conf
net.bridge.bridge-nf-call-iptables  = 1
net.ipv4.ip_forward                 = 1
net.bridge.bridge-nf-call-ip6tables = 1
EOF

# Apply sysctl params without reboot
$ sudo sysctl --system

2、下线节点

<node-to-drain> 替换为你所要下线的节点的名称

kubectl drain <node-to-drain> --ignore-daemonsets

3、停止 Docker 守护进程

systemctl stop kubelet
systemctl disable docker.service --now

4、二进制安装containerd

$ wget https://github.com/containerd/containerd/releases/download/v1.7.20/containerd-1.7.20-linux-amd64.tar.gz
$ tar -xf containerd-1.7.20-linux-amd64.tar.gz

#复制bin下所有二进制文件到/usr/bin 目录下,并覆盖之前的文件
$ cp bin/* /usr/bin/
cp:是否覆盖'/usr/bin/containerd'? y
cp:是否覆盖'/usr/bin/containerd-shim'? y
cp:是否覆盖'/usr/bin/containerd-shim-runc-v2'? y
cp:是否覆盖'/usr/bin/ctr'? y

#验证containerd的版本
$ containerd --version
containerd github.com/containerd/containerd v1.7.20 8fc6bcff51318944179630522a095cc9dbf9f353


#创建containerd 配置文件
$ mkdir -p /etc/containerd

#也可以使用生成的默认配置
$ containerd config default | sudo tee /etc/containerd/config.toml

修改containerd配置文件

$ cat > /etc/containerd/config.toml << EOF
disabled_plugins = []
imports = []
oom_score = 0
plugin_dir = ""
required_plugins = []
root = "/var/lib/containerd"
state = "/run/containerd"
temp = ""
version = 2

[cgroup]
  path = ""

[debug]
  address = ""
  format = ""
  gid = 0
  level = ""
  uid = 0

[grpc]
  address = "/run/containerd/containerd.sock"
  gid = 0
  max_recv_message_size = 16777216
  max_send_message_size = 16777216
  tcp_address = ""
  tcp_tls_ca = ""
  tcp_tls_cert = ""
  tcp_tls_key = ""
  uid = 0

[metrics]
  address = ""
  grpc_histogram = false

[plugins]

  [plugins."io.containerd.gc.v1.scheduler"]
    deletion_threshold = 0
    mutation_threshold = 100
    pause_threshold = 0.02
    schedule_delay = "0s"
    startup_delay = "100ms"

  [plugins."io.containerd.grpc.v1.cri"]
    device_ownership_from_security_context = false
    disable_apparmor = false
    disable_cgroup = false
    disable_hugetlb_controller = true
    disable_proc_mount = false
    disable_tcp_service = true
    enable_selinux = false
    enable_tls_streaming = false
    enable_unprivileged_icmp = false
    enable_unprivileged_ports = false
    ignore_image_defined_volumes = false
    max_concurrent_downloads = 3
    max_container_log_line_size = 16384
    netns_mounts_under_state_dir = false
    restrict_oom_score_adj = false
    sandbox_image = "registry.aliyuncs.com/google_containers/pause:3.6"
    selinux_category_range = 1024
    stats_collect_period = 10
    stream_idle_timeout = "4h0m0s"
    stream_server_address = "127.0.0.1"
    stream_server_port = "0"
    systemd_cgroup = false
    tolerate_missing_hugetlb_controller = true
    unset_seccomp_profile = ""

    [plugins."io.containerd.grpc.v1.cri".cni]
      bin_dir = "/opt/cni/bin"
      conf_dir = "/etc/cni/net.d"
      conf_template = ""
      ip_pref = ""
      max_conf_num = 1

    [plugins."io.containerd.grpc.v1.cri".containerd]
      default_runtime_name = "runc"
      disable_snapshot_annotations = true
      discard_unpacked_layers = false
      ignore_rdt_not_enabled_errors = false
      no_pivot = false
      snapshotter = "overlayfs"

      [plugins."io.containerd.grpc.v1.cri".containerd.default_runtime]
        base_runtime_spec = ""
        cni_conf_dir = ""
        cni_max_conf_num = 0
        container_annotations = []
        pod_annotations = []
        privileged_without_host_devices = false
        runtime_engine = ""
        runtime_path = ""
        runtime_root = ""
        runtime_type = ""

        [plugins."io.containerd.grpc.v1.cri".containerd.default_runtime.options]

      [plugins."io.containerd.grpc.v1.cri".containerd.runtimes]

        [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc]
          base_runtime_spec = ""
          cni_conf_dir = ""
          cni_max_conf_num = 0
          container_annotations = []
          pod_annotations = []
          privileged_without_host_devices = false
          runtime_engine = ""
          runtime_path = ""
          runtime_root = ""
          runtime_type = "io.containerd.runc.v2"

          [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]
            BinaryName = ""
            CriuImagePath = ""
            CriuPath = ""
            CriuWorkPath = ""
            IoGid = 0
            IoUid = 0
            NoNewKeyring = false
            NoPivotRoot = false
            Root = ""
            ShimCgroup = ""
            SystemdCgroup = true

    [plugins."io.containerd.grpc.v1.cri".containerd.untrusted_workload_runtime]
      base_runtime_spec = ""
      cni_conf_dir = ""
      cni_max_conf_num = 0
      container_annotations = []
      pod_annotations = []
      privileged_without_host_devices = false
      runtime_engine = ""
      runtime_path = ""
      runtime_root = ""
      runtime_type = ""

      [plugins."io.containerd.grpc.v1.cri".containerd.untrusted_workload_runtime.options]

    [plugins."io.containerd.grpc.v1.cri".image_decryption]
      key_model = "node"

    [plugins."io.containerd.grpc.v1.cri".registry]
      config_path = ""

      [plugins."io.containerd.grpc.v1.cri".registry.auths]

      [plugins."io.containerd.grpc.v1.cri".registry.configs]

      [plugins."io.containerd.grpc.v1.cri".registry.headers]

      [plugins."io.containerd.grpc.v1.cri".registry.mirrors]
        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."docker.io"]
          endpoint = [
            "https://docker.srebro.site"
          ]
        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."gcr.io"]
          endpoint = [
            "https://gcr.srebro.site"
          ]
        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."k8s.gcr.io"]
          endpoint = [
            "https://k8s-gcr.srebro.site"
          ]
        [plugins."io.containerd.grpc.v1.cri".registry.mirrors."quay.io"]
          endpoint = [
            "https://quay.srebro.site"
          ]

    [plugins."io.containerd.grpc.v1.cri".x509_key_pair_streaming]
      tls_cert_file = ""
      tls_key_file = ""

  [plugins."io.containerd.internal.v1.opt"]
    path = "/opt/containerd"

  [plugins."io.containerd.internal.v1.restart"]
    interval = "10s"

  [plugins."io.containerd.internal.v1.tracing"]
    sampling_ratio = 1.0
    service_name = "containerd"

  [plugins."io.containerd.metadata.v1.bolt"]
    content_sharing_policy = "shared"

  [plugins."io.containerd.monitor.v1.cgroups"]
    no_prometheus = false

  [plugins."io.containerd.runtime.v1.linux"]
    no_shim = false
    runtime = "runc"
    runtime_root = ""
    shim = "containerd-shim"
    shim_debug = false

  [plugins."io.containerd.runtime.v2.task"]
    platforms = ["linux/amd64"]
    sched_core = false

  [plugins."io.containerd.service.v1.diff-service"]
    default = ["walking"]

  [plugins."io.containerd.service.v1.tasks-service"]
    rdt_config_file = ""

  [plugins."io.containerd.snapshotter.v1.aufs"]
    root_path = ""

  [plugins."io.containerd.snapshotter.v1.btrfs"]
    root_path = ""

  [plugins."io.containerd.snapshotter.v1.devmapper"]
    async_remove = false
    base_image_size = ""
    discard_blocks = false
    fs_options = ""
    fs_type = ""
    pool_name = ""
    root_path = ""

  [plugins."io.containerd.snapshotter.v1.native"]
    root_path = ""

  [plugins."io.containerd.snapshotter.v1.overlayfs"]
    root_path = ""
    upperdir_label = false

  [plugins."io.containerd.snapshotter.v1.zfs"]
    root_path = ""

  [plugins."io.containerd.tracing.processor.v1.otlp"]
    endpoint = ""
    insecure = false
    protocol = ""

[proxy_plugins]

[stream_processors]

  [stream_processors."io.containerd.ocicrypt.decoder.v1.tar"]
    accepts = ["application/vnd.oci.image.layer.v1.tar+encrypted"]
    args = ["--decryption-keys-path", "/etc/containerd/ocicrypt/keys"]
    env = ["OCICRYPT_KEYPROVIDER_CONFIG=/etc/containerd/ocicrypt/ocicrypt_keyprovider.conf"]
    path = "ctd-decoder"
    returns = "application/vnd.oci.image.layer.v1.tar"

  [stream_processors."io.containerd.ocicrypt.decoder.v1.tar.gzip"]
    accepts = ["application/vnd.oci.image.layer.v1.tar+gzip+encrypted"]
    args = ["--decryption-keys-path", "/etc/containerd/ocicrypt/keys"]
    env = ["OCICRYPT_KEYPROVIDER_CONFIG=/etc/containerd/ocicrypt/ocicrypt_keyprovider.conf"]
    path = "ctd-decoder"
    returns = "application/vnd.oci.image.layer.v1.tar+gzip"

[timeouts]
  "io.containerd.timeout.bolt.open" = "0s"
  "io.containerd.timeout.shim.cleanup" = "5s"
  "io.containerd.timeout.shim.load" = "5s"
  "io.containerd.timeout.shim.shutdown" = "3s"
  "io.containerd.timeout.task.state" = "2s"

[ttrpc]
  address = ""
  gid = 0
  uid = 0
EOF

使用systemd管理containerd ,并启动

$ cat > /etc/systemd/system/containerd.service << EOF

[Unit]
Description=containerd container runtime
Documentation=https://containerd.io
After=network.target

[Service]
ExecStart=/usr/bin/containerd
Restart=always
RestartSec=5
Delegate=yes
KillMode=process
OOMScoreAdjust=-999

[Install]
WantedBy=multi-user.target
EOF


$ systemctl daemon-reload
$ systemctl enable containerd
$ systemctl restart containerd

5、配置kubelet使用containerd并重启kubelet

$ vim /etc/sysconfig/kubelet
KUBELET_EXTRA_ARGS=--container-runtime=remote --container-runtime-endpoint=unix:///run/containerd/containerd.sock --cgroup-driver=systemd

$ systemctl restart kubelet

6、验证节点处于健康状态

# 会显示出containerd版本,健康状态
$ kubectl get nodes -o wide
NAME         STATUS   ROLES                  AGE     VERSION    INTERNAL-IP     EXTERNAL-IP   OS-IMAGE                    KERNEL-VERSION                        CONTAINER-RUNTIME
k8s-master   Ready    control-plane,master   7d21h   v1.20.15   172.22.33.210   <none>        openEuler 22.03 (LTS-SP4)   5.10.0-221.0.0.124.oe2203sp3.x86_64   containerd://1.7.20
k8s-node1    Ready,SchedulingDisabled    <none>                 7d21h   v1.20.15   172.22.33.211   <none>        openEuler 22.03 (LTS-SP4)   5.10.0-221.0.0.124.oe2203sp3.x86_64   containerd://1.7.20
k8s-node2    Ready    <none>                 7d21h   v1.20.15   172.22.33.212   <none>        openEuler 22.03 (LTS-SP4)   5.10.0-221.0.0.124.oe2203sp3.x86_64   containerd://1.7.20
k8s-node3    Ready    <none>                 6d22h   v1.20.15   172.22.33.213   <none>        openEuler 22.03 (LTS-SP4)   5.10.0-221.0.0.124.oe2203sp3.x86_64   containerd://1.7.20

7、uncordon 节点

<node-to-uncordon> 替换为你之前下线的节点的名称。

$ kubectl uncordon <node-to-uncordon>

8、再次验证

[root@k8s-master bin]# kubectl get nodes -o wide
NAME         STATUS   ROLES                  AGE     VERSION    INTERNAL-IP     EXTERNAL-IP   OS-IMAGE                    KERNEL-VERSION                        CONTAINER-RUNTIME
k8s-master   Ready    control-plane,master   7d21h   v1.20.15   172.22.33.210   <none>        openEuler 22.03 (LTS-SP4)   5.10.0-221.0.0.124.oe2203sp3.x86_64   containerd://1.7.20
k8s-node1    Ready    <none>                 7d21h   v1.20.15   172.22.33.211   <none>        openEuler 22.03 (LTS-SP4)   5.10.0-221.0.0.124.oe2203sp3.x86_64   containerd://1.7.20
k8s-node2    Ready    <none>                 7d21h   v1.20.15   172.22.33.212   <none>        openEuler 22.03 (LTS-SP4)   5.10.0-221.0.0.124.oe2203sp3.x86_64   containerd://1.7.20
k8s-node3    Ready    <none>                 6d22h   v1.20.15   172.22.33.213   <none>        openEuler 22.03 (LTS-SP4)   5.10.0-221.0.0.124.oe2203sp3.x86_64   docker://20.10.18

11.2 kubectl 命令补齐

$ yum install bash-completion -y
$ source /usr/share/bash-completion/bash_completion
$ source <(kubectl completion bash)
$ kubectl completion bash >/etc/bash_completion.d/kubectl
