一、velero 简介

Velero 是vmware开源的一个云原生的灾难恢复和迁移工具，它本身也是开源的,采用Go语言编写，可以安全的备份、恢复和迁移Kubernetes集群资源数据；Velero 是西班牙语意思是帆船，非常符合Kubernetes社区的命名风格，Velero的开发公司Heptio，已被VMware收购。Velero 支持标准的K8S集群，既可以是私有云平台也可以是公有云，除了灾备之外它还能做资源移转，支持把容器应用从一个集群迁移到另一个集群。Velero 的工作方式就是把kubernetes中的数据备份到对象存储以实现高可用和持久化，默认的备份保存时间为720小时，并在需要的时候进行下载和恢复。

github: https://github.com/vmware-tanzu/velero

官网：https://velero.io/

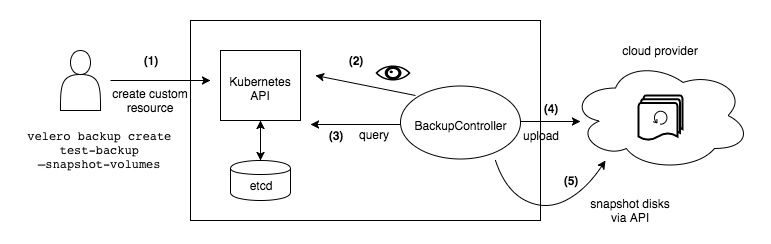

55c368ec85b5d7809f04c788c12d5b656a9c0a0a58fdaf833e1e90e9a9b9918c

二、 velero 和 ETCD 备份的区别

2.1 velero 备份

Velero 是一个开源工具，用于备份和恢复 Kubernetes 集群中的资源和持久化数据。它支持对 Kubernetes 资源（如 Pods、Services、Deployments 等）和持久卷（Persistent Volumes）进行备份和恢复。

主要特点：

备份 Kubernetes 资源：包括集群的 API 对象和元数据。
备份持久化数据：通过与存储供应商（如 AWS S3、Azure Blob、Google Cloud Storage 等）集成，备份 PVC 中的数据。
备份计划：可以设置定期备份和备份策略。
迁移支持：可以用于跨集群或跨云的迁移。
恢复功能：支持恢复整个集群或部分资源。

使用场景：

需要备份和恢复整个 Kubernetes 集群的配置和持久化数据。
需要支持跨集群的迁移。
需要定期备份和恢复 Kubernetes 对象和 PVC 数据。

2.2 etcd 备份

etcd 是 Kubernetes 的核心组件之一，存储了集群的所有状态和配置信息。etcd 备份 是针对 etcd 数据库的备份，主要用于备份和恢复 Kubernetes 的集群状态和配置。

主要特点：

备份 Kubernetes 状态：包括集群的所有配置和状态数据。
原生备份：直接备份 etcd 数据库，而不是通过 Kubernetes API。
恢复集群状态：可以恢复整个集群的状态到备份时的状态。

使用场景：

需要备份和恢复 Kubernetes 集群的核心状态和配置信息。
需要恢复集群的状态到某个时间点。
需要直接操作 etcd 数据库进行备份和恢复。

2.3 对比

特性	Velero	etcd 备份
备份内容	Kubernetes 资源和持久卷	etcd 数据库（集群状态和配置）
备份方式	通过 Velero CLI，存储在外部存储	使用 `etcdctl` 工具，存储在指定位置
恢复内容	Kubernetes 资源和持久卷	恢复集群的状态和配置
使用场景	跨集群迁移、集群资源备份与恢复	集群状态恢复、紧急恢复
自动化	支持定期备份和恢复策略	通常手动执行备份和恢复

2.4.选择建议

使用 Velero 如果你需要备份和恢复整个 Kubernetes 集群的资源和持久化数据，包括跨集群迁移和定期备份。
使用 etcd 备份 如果你专注于备份和恢复 Kubernetes 的核心状态和配置，特别是在需要恢复整个集群状态到某个时间点时。

有时，你可能需要同时使用这两种备份策略，以确保全面的数据保护和恢复能力。例如，你可以使用 Velero 备份 Kubernetes 资源和持久卷，而使用 etcd 备份来保护集群的核心状态和配置；本文呢主要阐述对 velero 的备份详解

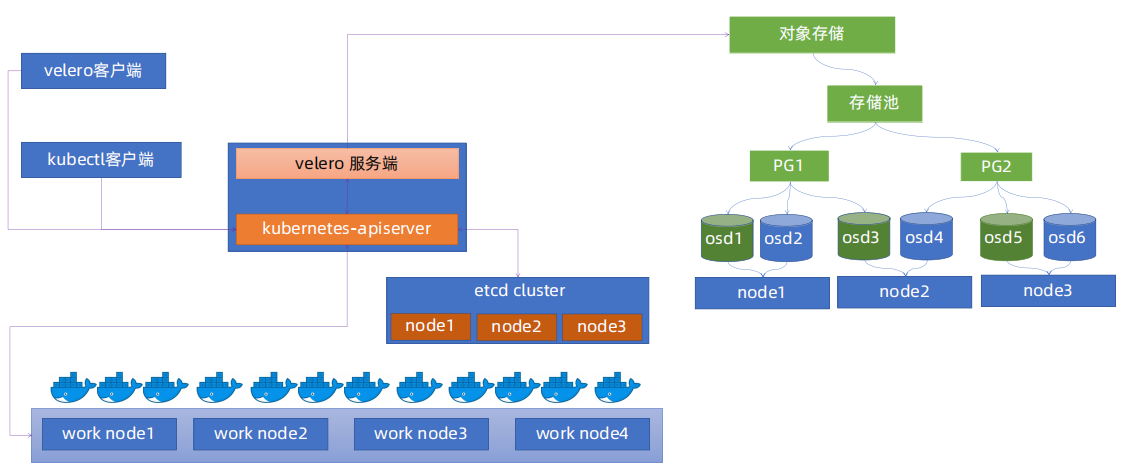

三、velero整体架构

需要部署一个 Velero 服务端到集群，该服务端拥有访问集群资源的权限；
通过 velero 二进制程序部署服务端的同时，其也会向 kubernetes 集群中同时注册一些 crd 资源，这些 crd 资源可以对我们备份、还原的资源做抽象；
通过 crd 资源创建一个备份请求对象，服务端控制器会根据请求内容完成目标预期的备份，并将备份后的文件上传至配置的远端存储（需要支持 S3 协议，如 Ceph、Minio 都可以）；
备份完毕后，可以通过获取特定的 crd 资源来查看备份的记录（文件）；
通过 crd 资源创建一个还原请求对象，服务端控制器会根据请求内容对应的备份文件，将备份内容恢复到集群；

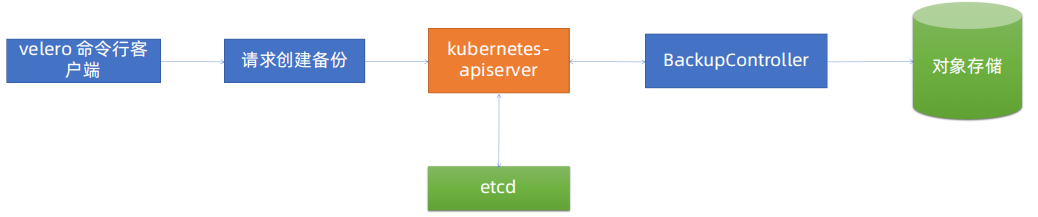

四、velero备份流程

Velero 客户端调用Kubernetes API Server创建Backup任务。
Backup 控制器基于watch 机制通过API Server获取到备份任务。
Backup 控制器开始执行备份动作，其会通过请求API Server获取需要备份的数据。
Backup 控制器将获取到的数据备份到指定的对象存储server端。

五、集群迁移示例

实验目的：

在两个集群迁移 kubernetes 资源需要进行的动作，使用velero，将 A 集群 default 名称空间及其下的资源迁移到 B 集群

软件名称	版本	备注
K8S-A集群	V1.20.15
K8S-B集群	V1.20.15
minio 单节点	RELEASE.2024-06-13T22-53-53Z	docker-compose 部署
velero	V1.14.0

大致步骤：

部署一个 minio，用来作为 Velero 上传备份文件的远端存储；
在两个 kubernetes 集群中都部署一个 Velero 服务端，这两个服务端的远端存储都配置同一个 minio，且指定使用同一个 bucket；

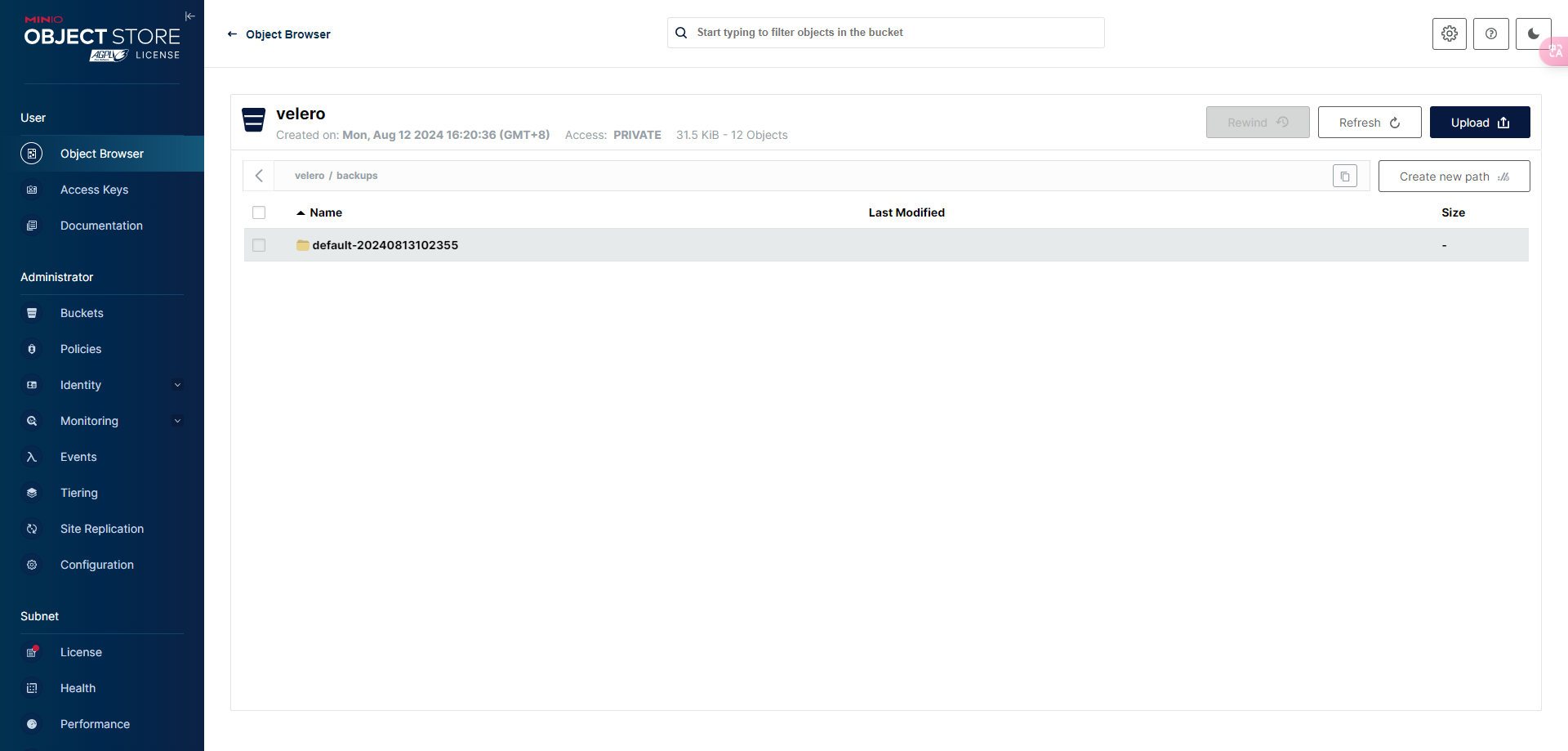

在 A 集群中创建一个对 default 名称空间的备份请求，确认备份动作执行完毕；

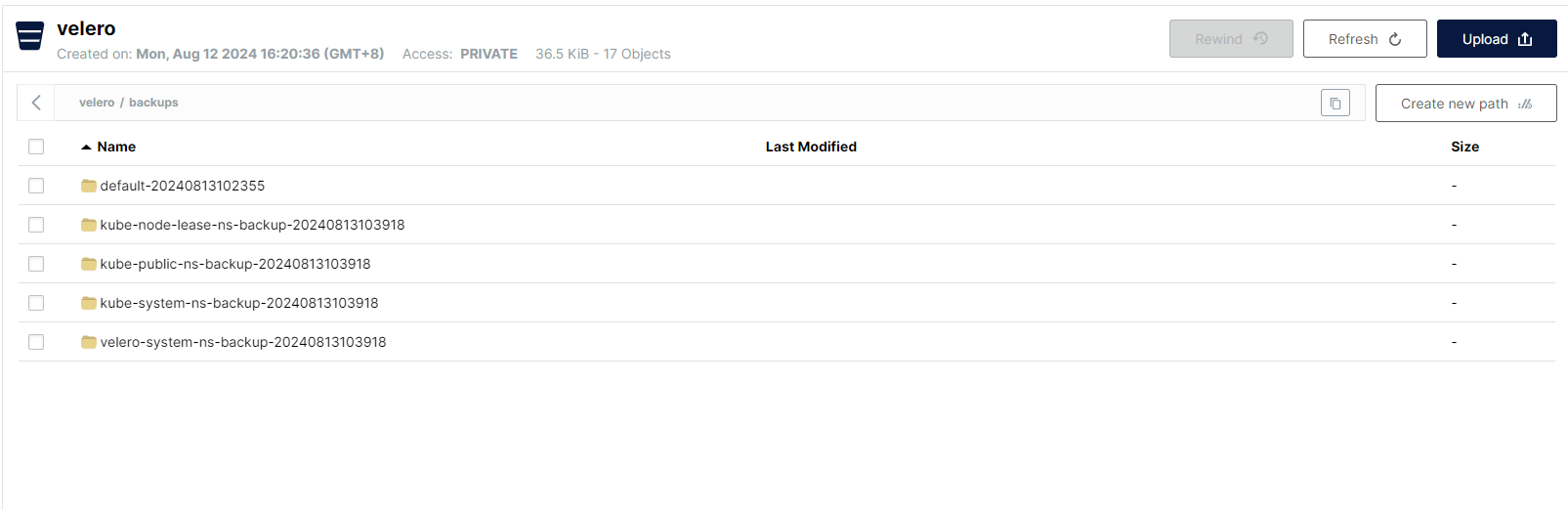

登录 B 集群查看 A 集群中备份的记录文件；
在B 集群创建一个还原请求，将 A 集群备份的文件还原到 B 集群；
在B 集群验证 default 命名空间下的资源是否正确。

六、对象存储minio部署

为了方便测试，这里测试docker-compose 的部署方式

6.1 创建minio工作目录

$ mkdir -p /home/application/minio

6.2 编写docker-compose.yaml 文件

$ vim /home/application/minio/docker-compose.yaml

version: '3'
services:
  minio:
    image: minio/minio:latest
    container_name: minio
    networks:
      - srebro
    ports:
      - 9000:9000
      - 9001:9001
    volumes:
      - /home/application/minio/data:/data
      - /etc/localtime:/etc/localtime
    environment:
      MINIO_ROOT_USER: admin
      MINIO_ROOT_PASSWORD: 'srebro'
    command: server /data --console-address :9001
    restart: unless-stopped

networks:
  srebro:
    driver: bridge

6.3 运行minio，并创建bucket

$ cd /home/application/minio

$ docker-compose up -d

[root@localhost minio]# docker-compose ps
NAME                COMMAND                  SERVICE             STATUS              PORTS
minio               "/usr/bin/docker-ent…"   minio               running             0.0.0.0:9000-9001->9000-9001/tcp, :::9000-9001->9000-9001/tcp

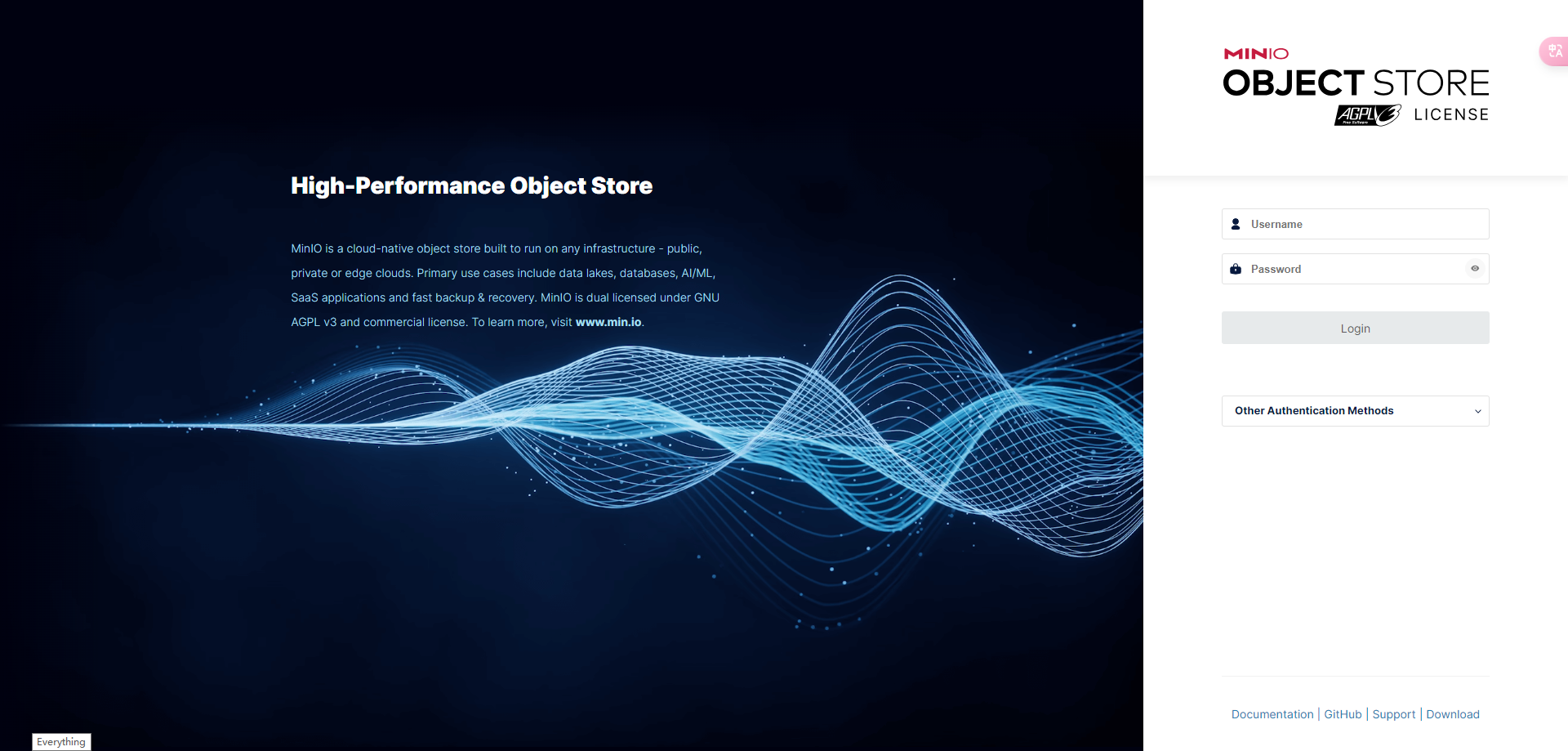

打开web控制台： http://XX.XX.XX.XX:9001
docker-compose文件中已经指定了用户名/密码： admin/srebro

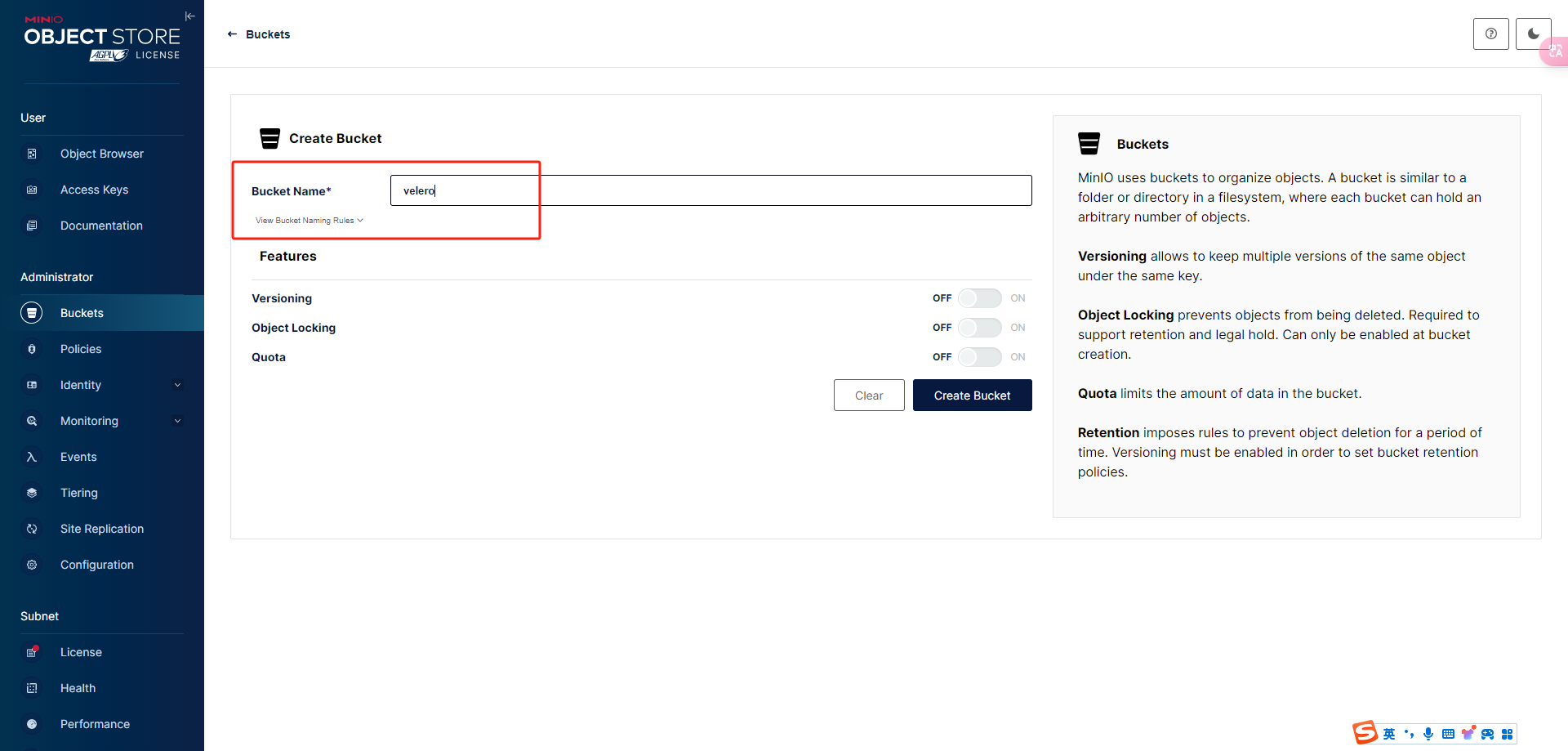

创建bucket，名称为：velero

七、部署velero

7.1 下载velero二进制程序

分别部署到 A 和 B 集群中

$ wget https://github.com/vmware-tanzu/velero/releases/download/v1.14.0/velero-v1.14.0-linux-amd64.tar.gz

$ tar -xf velero-v1.14.0-linux-amd64.tar.gz

$ mv velero-v1.14.0-linux-amd64/velero /usr/local/bin

#查看velero版本
[root@openeuler ~]#  velero version
Client:
	Version: v1.14.0
	Git commit: 2fc6300f2239f250b40b0488c35feae59520f2d3
<error getting server version: namespaces "velero" not found>

7.2 部署服务端到集群

7.2.1 创建velero创建远端存储认证文件

分别部署到 A 和 B 集群中

aws_access_key_id： minio用户名

aws_secret_access_key： minio密码

$ mkdir -p /home/application/velero/


$ cat  > /home/application/velero/velero-auth.txt << EOF
[default]
aws_access_key_id = admin
aws_secret_access_key = srebro
EOF

7.2.1 部署服务端到A 集群

使用 --kubeconfig 选项指定部署到的集群；

使用 --namespace 指定部署到的名称空间；

使用 s3Url 指定备份使用的远端存储 Url，这里我指定的是 Minio 地址；

velero install \
  --kubeconfig /root/.kube/config \
  --provider aws \
  --plugins velero/velero-plugin-for-aws:v1.5.5 \
  --bucket velero \
  --secret-file /home/application/velero/velero-auth.txt \
  --use-volume-snapshots=false \
  --namespace velero-system \
  --backup-location-config region=minio,s3ForcePathStyle="true",s3Url=http://172.22.33.204:9000

.......................以下为输出内容.........................................................
CustomResourceDefinition/backuprepositories.velero.io: attempting to create resource
CustomResourceDefinition/backuprepositories.velero.io: attempting to create resource client
CustomResourceDefinition/backuprepositories.velero.io: created
CustomResourceDefinition/backups.velero.io: attempting to create resource
CustomResourceDefinition/backups.velero.io: attempting to create resource client
CustomResourceDefinition/backups.velero.io: created
CustomResourceDefinition/backupstoragelocations.velero.io: attempting to create resource
CustomResourceDefinition/backupstoragelocations.velero.io: attempting to create resource client
CustomResourceDefinition/backupstoragelocations.velero.io: created
CustomResourceDefinition/deletebackuprequests.velero.io: attempting to create resource
CustomResourceDefinition/deletebackuprequests.velero.io: attempting to create resource client
CustomResourceDefinition/deletebackuprequests.velero.io: created
CustomResourceDefinition/downloadrequests.velero.io: attempting to create resource
CustomResourceDefinition/downloadrequests.velero.io: attempting to create resource client
CustomResourceDefinition/downloadrequests.velero.io: created
CustomResourceDefinition/podvolumebackups.velero.io: attempting to create resource
CustomResourceDefinition/podvolumebackups.velero.io: attempting to create resource client
CustomResourceDefinition/podvolumebackups.velero.io: created
CustomResourceDefinition/podvolumerestores.velero.io: attempting to create resource
CustomResourceDefinition/podvolumerestores.velero.io: attempting to create resource client
CustomResourceDefinition/podvolumerestores.velero.io: created
CustomResourceDefinition/restores.velero.io: attempting to create resource
CustomResourceDefinition/restores.velero.io: attempting to create resource client
CustomResourceDefinition/restores.velero.io: created
CustomResourceDefinition/schedules.velero.io: attempting to create resource
CustomResourceDefinition/schedules.velero.io: attempting to create resource client
CustomResourceDefinition/schedules.velero.io: created
CustomResourceDefinition/serverstatusrequests.velero.io: attempting to create resource
CustomResourceDefinition/serverstatusrequests.velero.io: attempting to create resource client
CustomResourceDefinition/serverstatusrequests.velero.io: created
CustomResourceDefinition/volumesnapshotlocations.velero.io: attempting to create resource
CustomResourceDefinition/volumesnapshotlocations.velero.io: attempting to create resource client
CustomResourceDefinition/volumesnapshotlocations.velero.io: created
CustomResourceDefinition/datadownloads.velero.io: attempting to create resource
CustomResourceDefinition/datadownloads.velero.io: attempting to create resource client
CustomResourceDefinition/datadownloads.velero.io: created
CustomResourceDefinition/datauploads.velero.io: attempting to create resource
CustomResourceDefinition/datauploads.velero.io: attempting to create resource client
CustomResourceDefinition/datauploads.velero.io: created
Waiting for resources to be ready in cluster...
Namespace/velero-system: attempting to create resource
Namespace/velero-system: attempting to create resource client
Namespace/velero-system: created
ClusterRoleBinding/velero-velero-system: attempting to create resource
ClusterRoleBinding/velero-velero-system: attempting to create resource client
ClusterRoleBinding/velero-velero-system: created
ServiceAccount/velero: attempting to create resource
ServiceAccount/velero: attempting to create resource client
ServiceAccount/velero: created
Secret/cloud-credentials: attempting to create resource
Secret/cloud-credentials: attempting to create resource client
Secret/cloud-credentials: created
BackupStorageLocation/default: attempting to create resource
BackupStorageLocation/default: attempting to create resource client
BackupStorageLocation/default: created
Deployment/velero: attempting to create resource
Deployment/velero: attempting to create resource client
Deployment/velero: created
Velero is installed! ⛵ Use 'kubectl logs deployment/velero -n velero-system' to view the status.

7.2.2 部署服务端到B 集群

velero install \
  --kubeconfig /root/.kube/config \
  --provider aws \
  --plugins velero/velero-plugin-for-aws:v1.5.5 \
  --bucket velero \
  --secret-file /home/application/velero/velero-auth.txt \
  --use-volume-snapshots=false \
  --namespace velero-system \
  --backup-location-config region=minio,s3ForcePathStyle="true",s3Url=http://172.22.33.204:9000



..........................以下为输出内容.........................................................
CustomResourceDefinition/backuprepositories.velero.io: attempting to create resource
CustomResourceDefinition/backuprepositories.velero.io: attempting to create resource client
CustomResourceDefinition/backuprepositories.velero.io: created
CustomResourceDefinition/backups.velero.io: attempting to create resource
CustomResourceDefinition/backups.velero.io: attempting to create resource client
CustomResourceDefinition/backups.velero.io: created
CustomResourceDefinition/backupstoragelocations.velero.io: attempting to create resource
CustomResourceDefinition/backupstoragelocations.velero.io: attempting to create resource client
CustomResourceDefinition/backupstoragelocations.velero.io: created
CustomResourceDefinition/deletebackuprequests.velero.io: attempting to create resource
CustomResourceDefinition/deletebackuprequests.velero.io: attempting to create resource client
CustomResourceDefinition/deletebackuprequests.velero.io: created
CustomResourceDefinition/downloadrequests.velero.io: attempting to create resource
CustomResourceDefinition/downloadrequests.velero.io: attempting to create resource client
CustomResourceDefinition/downloadrequests.velero.io: created
CustomResourceDefinition/podvolumebackups.velero.io: attempting to create resource
CustomResourceDefinition/podvolumebackups.velero.io: attempting to create resource client
CustomResourceDefinition/podvolumebackups.velero.io: created
CustomResourceDefinition/podvolumerestores.velero.io: attempting to create resource
CustomResourceDefinition/podvolumerestores.velero.io: attempting to create resource client
CustomResourceDefinition/podvolumerestores.velero.io: created
CustomResourceDefinition/restores.velero.io: attempting to create resource
CustomResourceDefinition/restores.velero.io: attempting to create resource client
CustomResourceDefinition/restores.velero.io: created
CustomResourceDefinition/schedules.velero.io: attempting to create resource
CustomResourceDefinition/schedules.velero.io: attempting to create resource client
CustomResourceDefinition/schedules.velero.io: created
CustomResourceDefinition/serverstatusrequests.velero.io: attempting to create resource
CustomResourceDefinition/serverstatusrequests.velero.io: attempting to create resource client
CustomResourceDefinition/serverstatusrequests.velero.io: created
CustomResourceDefinition/volumesnapshotlocations.velero.io: attempting to create resource
CustomResourceDefinition/volumesnapshotlocations.velero.io: attempting to create resource client
CustomResourceDefinition/volumesnapshotlocations.velero.io: created
CustomResourceDefinition/datadownloads.velero.io: attempting to create resource
CustomResourceDefinition/datadownloads.velero.io: attempting to create resource client
CustomResourceDefinition/datadownloads.velero.io: created
CustomResourceDefinition/datauploads.velero.io: attempting to create resource
CustomResourceDefinition/datauploads.velero.io: attempting to create resource client
CustomResourceDefinition/datauploads.velero.io: created
Waiting for resources to be ready in cluster...
Namespace/velero-system: attempting to create resource
Namespace/velero-system: attempting to create resource client
Namespace/velero-system: created
ClusterRoleBinding/velero-velero-system: attempting to create resource
ClusterRoleBinding/velero-velero-system: attempting to create resource client
ClusterRoleBinding/velero-velero-system: created
ServiceAccount/velero: attempting to create resource
ServiceAccount/velero: attempting to create resource client
ServiceAccount/velero: created
Secret/cloud-credentials: attempting to create resource
Secret/cloud-credentials: attempting to create resource client
Secret/cloud-credentials: created
BackupStorageLocation/default: attempting to create resource
BackupStorageLocation/default: attempting to create resource client
BackupStorageLocation/default: created
Deployment/velero: attempting to create resource
Deployment/velero: attempting to create resource client
Deployment/velero: created
Velero is installed! ⛵ Use 'kubectl logs deployment/velero -n velero-system' to view the status.

7.3 在 A,b 集群确认 Velero 服务端已成功启动并就绪：

#A集群
[root@k8s-master ~]# kubectl get pods -n velero-system
NAME                      READY   STATUS    RESTARTS   AGE
velero-6cc6986575-h6r2k   1/1     Running   0          2m


#B集群
[root@openeuler ~]# kubectl get pods -n velero-system
NAME                      READY   STATUS    RESTARTS   AGE
velero-6cc6986575-hk6tc   1/1     Running   0          2m

八、备份与还原操作

8.1 A 集群执行备份动作

先查看下A 集群中，default 命名空间下资源信息

$  kubectl get all -n default

NAME                                READY   STATUS    RESTARTS   AGE
pod/pig-auth-66f5bcfd74-9qhlz       1/1     Running   0          4d
pod/pig-codegen-5865cd994b-g4rkd    1/1     Running   0          4d15h
pod/pig-gateway-7f754ffdbc-dhf72    1/1     Running   0          4d
pod/pig-monitor-5c5d67f57c-5gnwp    1/1     Running   0          4d15h
pod/pig-mysql-6c665c56c7-6jdq4      1/1     Running   0          4d15h
pod/pig-quartz-76fdbdf497-w9f6g     1/1     Running   0          4d15h
pod/pig-redis-554cfcc5cc-kfmv8      1/1     Running   0          4d15h
pod/pig-register-777df8f59b-lh7pt   1/1     Running   0          4d15h
pod/pig-ui-f48d64f76-wnpcx          1/1     Running   0          4d14h
pod/pig-upms-58d6f8448f-8njxd       1/1     Running   0          4d15h

NAME                   TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                         AGE
service/kubernetes     ClusterIP   10.96.0.1        <none>        443/TCP                         5d2m
service/pig-auth       ClusterIP   10.96.16.113     <none>        3000/TCP                        4d15h
service/pig-codegen    ClusterIP   10.108.2.9       <none>        5002/TCP                        4d15h
service/pig-gateway    NodePort    10.110.236.0     <none>        9999:32750/TCP                  4d15h
service/pig-monitor    ClusterIP   10.106.84.163    <none>        5001/TCP                        4d15h
service/pig-mysql      NodePort    10.106.57.25     <none>        3306:30406/TCP                  4d15h
service/pig-quartz     ClusterIP   10.104.94.147    <none>        5007/TCP                        4d15h
service/pig-redis      ClusterIP   10.101.95.155    <none>        6379/TCP                        4d15h
service/pig-register   NodePort    10.108.162.125   <none>        8848:31458/TCP,9848:32186/TCP   4d15h
service/pig-ui         NodePort    10.97.53.70      <none>        80:32545/TCP                    4d14h
service/pig-upms       ClusterIP   10.100.129.94    <none>        4000/TCP                        4d15h

NAME                           READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/pig-auth       1/1     1            1           4d15h
deployment.apps/pig-codegen    1/1     1            1           4d15h
deployment.apps/pig-gateway    1/1     1            1           4d15h
deployment.apps/pig-monitor    1/1     1            1           4d15h
deployment.apps/pig-mysql      1/1     1            1           4d15h
deployment.apps/pig-quartz     1/1     1            1           4d15h
deployment.apps/pig-redis      1/1     1            1           4d15h
deployment.apps/pig-register   1/1     1            1           4d15h
deployment.apps/pig-ui         1/1     1            1           4d14h
deployment.apps/pig-upms       1/1     1            1           4d15h

NAME                                      DESIRED   CURRENT   READY   AGE
replicaset.apps/pig-auth-66f5bcfd74       1         1         1       4d15h
replicaset.apps/pig-codegen-5865cd994b    1         1         1       4d15h
replicaset.apps/pig-gateway-7f754ffdbc    1         1         1       4d15h
replicaset.apps/pig-monitor-5c5d67f57c    1         1         1       4d15h
replicaset.apps/pig-mysql-6c665c56c7      1         1         1       4d15h
replicaset.apps/pig-quartz-76fdbdf497     1         1         1       4d15h
replicaset.apps/pig-redis-554cfcc5cc      1         1         1       4d15h
replicaset.apps/pig-register-777df8f59b   1         1         1       4d15h
replicaset.apps/pig-ui-f48d64f76          1         1         1       4d14h
replicaset.apps/pig-upms-58d6f8448f       1         1         1       4d15h

使用 velero 二进制程序创建备份请求，通过 --namespace 指定 Velero 服务端所在名称空间，--include-namespaces 指定要备份的名称空间：

$ DATE=`date +%Y%m%d%H%M%S`

$ velero backup create \
default-${DATE} \
--namespace velero-system \
--include-namespaces default \
--kubeconfig /root/.kube/config

Backup request "default-20240813102355" submitted successfully.
Run `velero backup describe default-20240813102355` or `velero backup logs default-20240813102355` for more details.

查看备份：

$ kubectl get backups.velero.io -n velero-system
NAME                     AGE
default-20240813102355   22s

查看备份日志：

 velero -n velero-system backup logs default-20240813102355

登录 Minio 进入名为 velero 的 bucket 可以看到对应的备份文件。

8.2 B 集群执行还原操作

先确认在 B 集群确认可以看到刚刚的备份：

$ kubectl -n velero-system get backups.velero.io
NAME                     AGE
default-20240813102355   4m4s

使用 velero 二进制程序创建还原请求，通过 --namespace 指定 Velero 服务端所在名称空间，--from-backup 指定要还原的备份文件：

velero restore create \
  --namespace velero-system \
  --kubeconfig /root/.kube/config \
  --from-backup default-20240813102355 --wait


Restore request "default-20240813102355-20240813103010" submitted successfully.
Waiting for restore to complete. You may safely press ctrl-c to stop waiting - your restore will continue in the background.
....
Restore completed with status: Completed. You may check for more information using the commands `velero restore describe default-20240813102355-20240813103010` and `velero restore logs default-20240813102355-20240813103010`.

查看还原日志：

$ velero -n velero-system restore logs default-20240813102355-20240813103010

查看还原后的资源：

$  kubectl get all -n default
NAME                                READY   STATUS    RESTARTS   AGE
pod/pig-auth-66f5bcfd74-9qhlz       1/1     Running   0          20S
pod/pig-codegen-5865cd994b-g4rkd    1/1     Running   0          20S
pod/pig-gateway-7f754ffdbc-dhf72    1/1     Running   0          20S
pod/pig-monitor-5c5d67f57c-5gnwp    1/1     Running   0          20S
pod/pig-mysql-6c665c56c7-6jdq4      1/1     Running   0          20S
pod/pig-quartz-76fdbdf497-w9f6g     1/1     Running   0          20S
pod/pig-redis-554cfcc5cc-kfmv8      1/1     Running   0          20S
pod/pig-register-777df8f59b-lh7pt   1/1     Running   0          20S
pod/pig-ui-f48d64f76-wnpcx          1/1     Running   0          20S
pod/pig-upms-58d6f8448f-8njxd       1/1     Running   0          20S

NAME                   TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                         AGE
service/kubernetes     ClusterIP   10.96.0.1        <none>        443/TCP                         20S
service/pig-auth       ClusterIP   10.110.68.56     <none>        3000/TCP                        20S
service/pig-codegen    ClusterIP   10.102.86.142    <none>        5002/TCP                        20S
service/pig-gateway    NodePort    10.98.59.211     <none>        9999:30618/TCP                  20S
service/pig-monitor    ClusterIP   10.102.164.245   <none>        5001/TCP                        20S
service/pig-mysql      NodePort    10.99.227.133    <none>        3306:30785/TCP                  20S
service/pig-quartz     ClusterIP   10.104.167.59    <none>        5007/TCP                        20S
service/pig-redis      ClusterIP   10.99.193.119    <none>        6379/TCP                        20S
service/pig-register   NodePort    10.99.188.165    <none>        8848:32639/TCP,9848:32506/TCP   20S
service/pig-ui         NodePort    10.105.20.18     <none>        80:31260/TCP                    20S
service/pig-upms       ClusterIP   10.106.203.13    <none>        4000/TCP                        20S

NAME                           READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/pig-auth       1/1     1            1           20S
deployment.apps/pig-codegen    1/1     1            1           20S
deployment.apps/pig-gateway    1/1     1            1           20S
deployment.apps/pig-monitor    1/1     1            1           20S
deployment.apps/pig-mysql      1/1     1            1           20S
deployment.apps/pig-quartz     1/1     1            1           20S
deployment.apps/pig-redis      1/1     1            1           20S
deployment.apps/pig-register   1/1     1            1           20S
deployment.apps/pig-ui         1/1     1            1           20S
deployment.apps/pig-upms       1/1     1            1           20S

NAME                                      DESIRED   CURRENT   READY   AGE
replicaset.apps/pig-auth-66f5bcfd74       1         1         1       20S
replicaset.apps/pig-codegen-5865cd994b    1         1         1       20S
replicaset.apps/pig-gateway-7f754ffdbc    1         1         1       20S
replicaset.apps/pig-monitor-5c5d67f57c    1         1         1       20S
replicaset.apps/pig-mysql-6c665c56c7      1         1         1       20S
replicaset.apps/pig-quartz-76fdbdf497     1         1         1       20S
replicaset.apps/pig-redis-554cfcc5cc      1         1         1       20S
replicaset.apps/pig-register-777df8f59b   1         1         1       20S
replicaset.apps/pig-ui-f48d64f76          1         1         1       20S
replicaset.apps/pig-upms-58d6f8448f       1         1         1       20S

九、补充

批量备份所有namespace

vim  all-ns-velero-backup.sh

#!/bin/bash
NS_NAME=`kubectl get ns | awk '{if (NR>2){print}}' | awk '{print $1}'`
DATE=`date +%Y%m%d%H%M%S`

cd /home/application/velero/
for i in $NS_NAME;do
velero backup create ${i}-ns-backup-${DATE} \
--include-namespaces ${i} \
--kubeconfig=/root/.kube/config \
--namespace velero-system
done

将备份设置为过期

创建备份时，可以通过添加标志 --ttl <DURATION> 来指定 TTL（生存时间）。如果 Velero 发现现有备份资源已过期，它将删除：

The TTL flag allows the user to specify the backup retention period with the value specified in hours, minutes and seconds in the form --ttl 24h0m0s. If not specified, a default TTL value of 30 days will be applied.
TTL 标志允许用户使用以小时、分钟和秒为单位指定的值指定备份保留期，格式为 --ttl 24h0m0s。如果未指定，将应用默认的 TTL 值 30 天。

十、参考

https://www.zze.xyz/archives/velero-backup-restore-k8s-resources
https://www.cnblogs.com/qiuhom-1874/p/17670945.html
